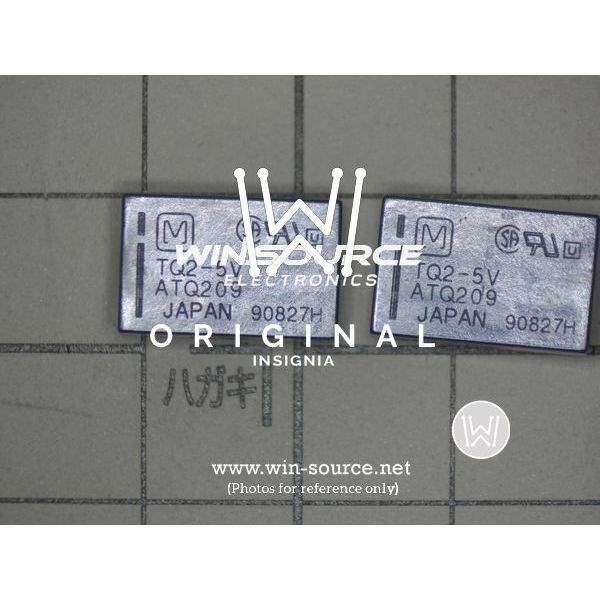

TQ2-5V Real Image TQ2-5V real image
Same model may have multiple batches, images only for reference.

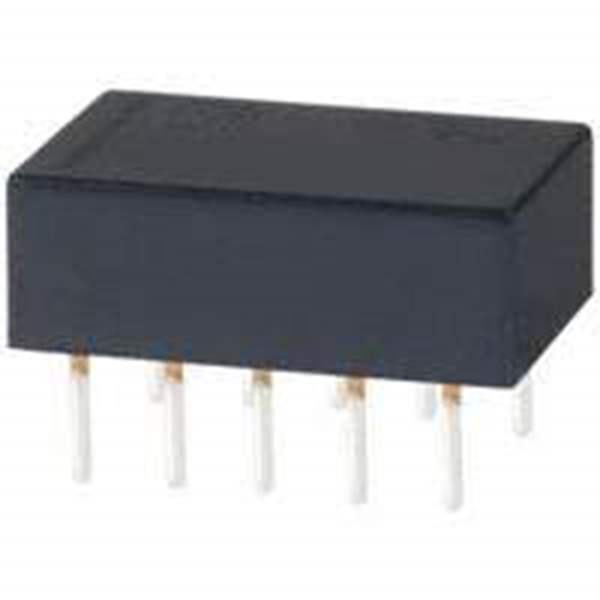

TQ2-5V Real Image TQ2-5V real image
TQ2-5V Real Image TQ2-5V real image
Same model may have multiple batches, images only for reference.

TQ2-5V

Part No TQ2-5V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 28.1mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 3ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 178 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 034934-TQ2-5V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Communications & Networking, Test & Measurement
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian TQ2-5V CAD Model

Description

The Panasonic Electric Works TQ2-5V is a DPDT (2 Form C) telecom relay in a through-hole package.

  • Coil Voltage: 5VDC
  • Coil Resistance: 178 Ohms
  • Coil Current: 28.1mA
  • Operate Time: 3ms
  • Release Time: 3ms
  • Contact Rating: 1A
  • Switching Voltage: 125VAC, 110VDC - Max
  • Suitable Applications: Industrial, communications, and networking
