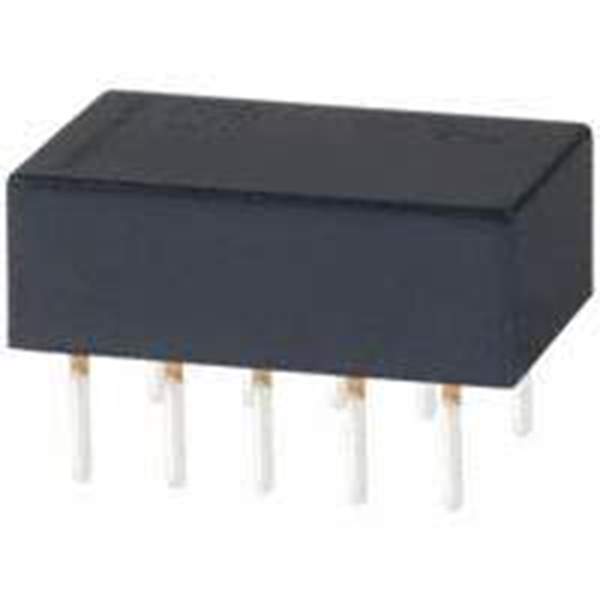

TQ2-3V Real Image TQ2-3V real image13715
Same model may have multiple batches, images only for reference.
TQ2-3V Real Image TQ2-3V real image13715
TQ2-3V Real Image TQ2-3V real image13715
Same model may have multiple batches, images only for reference.

TQ2-3V

Part No TQ2-3V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description LOW PROFILE 2 FORM C RELAY | RELAY TELECOM DPDT 1A 3VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 46.7mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 64.3 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1273816-TQ2-3V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TQ2-3V CAD Model

Description

The Panasonic Electric Works TQ2-3V is a DPDT (2 Form C) telecom relay that has a contact rating (current) of 1A and a switching voltage of 125VAC and 110VDC - Max.

  • Contact Rating (Current): 1A
  • Switching Voltage: 125VAC and 110VDC - Max
  • Coil Voltage: 3VDC
  • Coil Resistance: 64.3 Ohms
  • Coil Current: 46.7mA
  • Mounting Style: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 70°C
  • Packaging: Tube
  • Manufacturer Pack Quantity: 50
