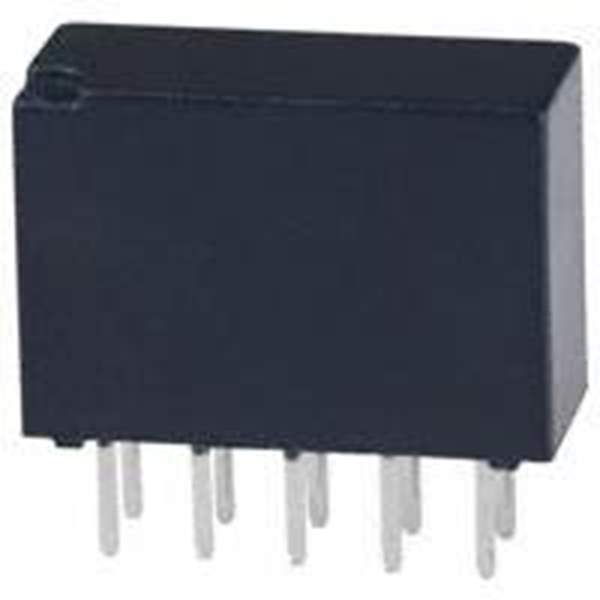

TN2-H-5V Real Image
Same model may have multiple batches, images only for reference.

TN2-H-5V

Part No TN2-H-5V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description SLIM POLARIZED RELAY | RELAY GEN PURPOSE DPDT 1A 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Status Obsolete
Mounting Style Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 28.1mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 178 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1271488-TN2-H-5V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TN2-H-5V CAD Model

Description

The Panasonic Electric Works relay is a general purpose component that is used to switch electrical circuits.

  • Contact Form: DPDT
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 110VDC
  • Product State: sealed fully
  • Temperature Range: -40°C to 70°C
  • Mounting Type: through a hole
  • Product Status: obsolete
  • Popularity: medium
