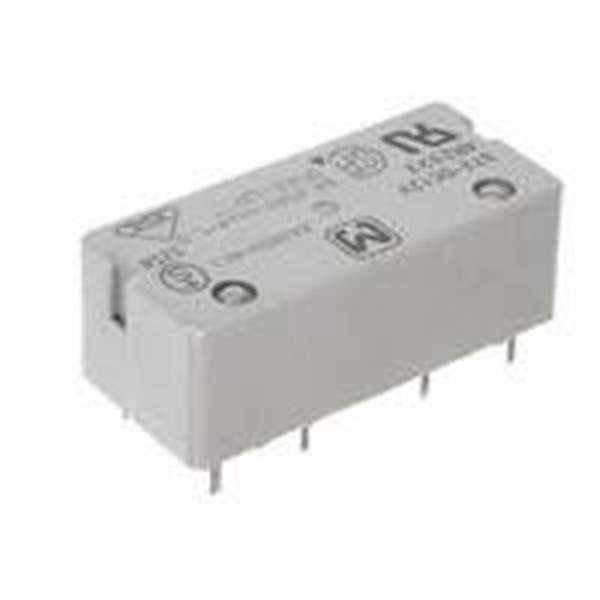

ST2-DC12V Real Image
Same model may have multiple batches, images only for reference.

ST2-DC12V

Part No ST2-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description IC DRIVABLE PC BOARD RELAY FOR FIELD LOAD SWITCHING | RELAY GEN PURPOSE DPST 8A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Status Obsolete
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Coil Current 20.0mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 15ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 600 Ohms
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Win Source Part Number 1260236-ST2-DC12V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian ST2-DC12V CAD Model

Description

The Panasonic Electric Works 1260236-ST2-DC12V is a DPST-NO relay with a coil voltage of 12VDC and a coil resistance of 600 Ohms.

  • Contact Rating: 8A
  • Switching Voltage: 380VAC, 250VDC - Max
  • Suitable for use in industrial applications
  • Classified as obsolete.
  • Seal Rating: Fully Sealed
  • Supplied in a tube package.
  • Limited Supply and Demand Status
  • Manufacturer Pack Quantity: 50
