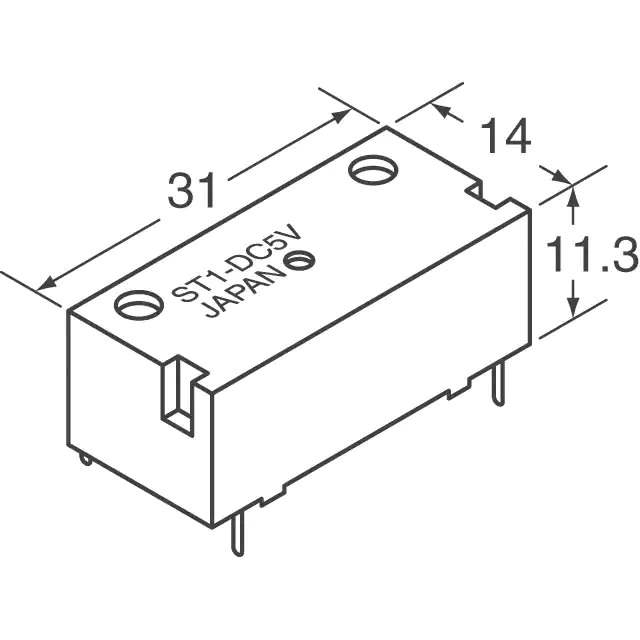

ST1-DC48V Real Image
Same model may have multiple batches, images only for reference.

ST1-DC48V

Part No ST1-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 48V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 48VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ST
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Max
Coil Current 5.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 38.4 VDC
Must Release Voltage 4.8 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 9 kOhms
Base Product Number ST1-DC
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 935167-ST1-DC48V
Ultra Librarian 3D Model Ultra Librarian ST1-DC48V CAD Model

Description

The Panasonic ST1-DC48V is a power relay designed for various applications.

  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Rating: 8A
  • Coil Voltage: 48VDC
  • Coil Resistance: 9 kOhms
  • Switching Voltage: 250VAC
  • Coil Current: 5.3 mA
  • Operate Time: 15 ms
  • Latching: Non-Latching
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 60°C
  • Construction: Sealed
  • Manufacturer: Panasonic
