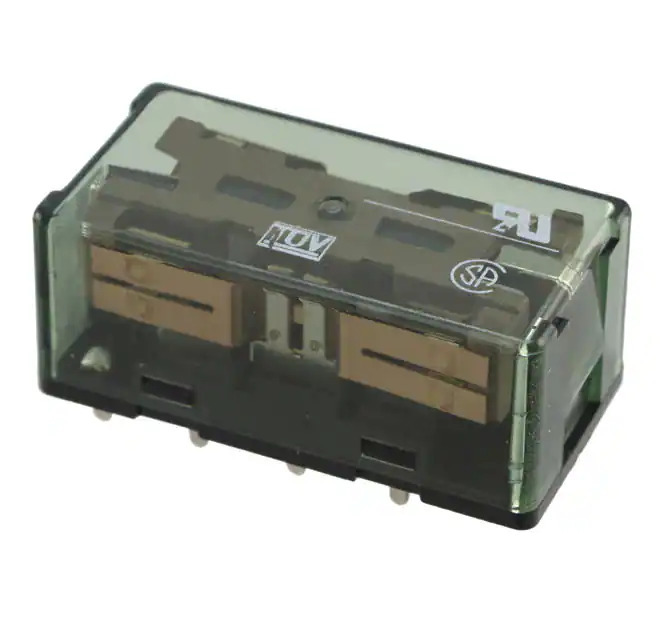

SP2-P-DC24V Panasonic
Same model may have multiple batches, images only for reference.

SP2-P-DC24V

Part No SP2-P-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series SP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 12.5 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 30 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.92 kOhms
Base Product Number SP2-P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373420-SP2-P-DC24V
Ultra Librarian 3D Model Ultra Librarian SP2-P-DC24V CAD Model

Description

The 1195959 is a power relay from Panasonic Electric Works.

  • Series: SP2-P
  • Coil Voltage: 24VDC
  • Contact Form: DPDT
  • Contact Rating: 15 A
  • Switching Voltage: 250VAC and 30VDC
  • Operating Temperature: -50°C to 60°C
  • Coil Current: 12.5 mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 16.8 VDC
  • Mounting Type: Through-Hole
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Operate Time: 30 ms
  • Release Time: 20 ms
  • Application: General Purpose
  • Product Status: Active
