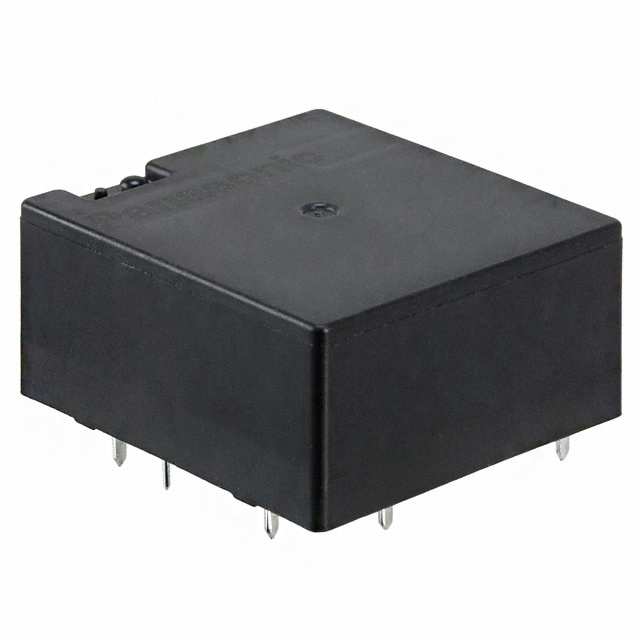

Same model may have multiple batches, images only for reference.
SP2-P-DC12V Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SP2-P-DC12V

Part No SP2-P-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 30VDC - Max
Load - Max Switching 3750VA, 450W
Coil Current 25 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 30 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, UR, VDE
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1549542-SP2-P-DC12V
Ultra Librarian 3D Model Ultra Librarian SP2-P-DC12V CAD Model
