Same model may have multiple batches, images only for reference.

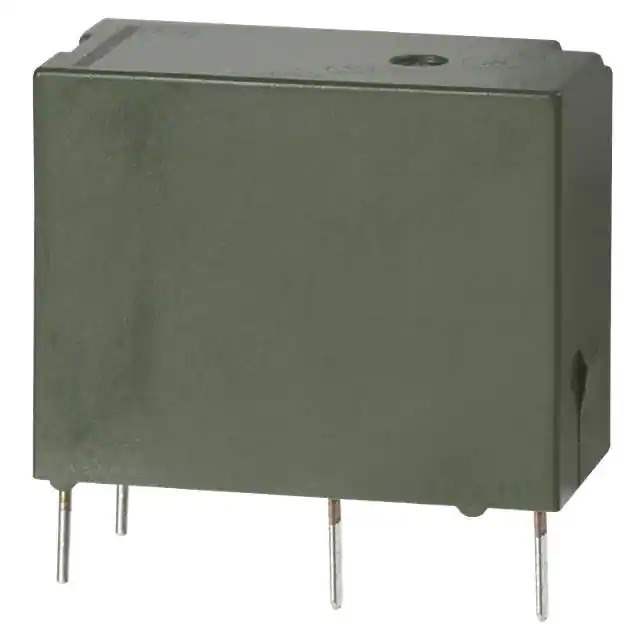

PQ1A-12V Real Image
Same model may have multiple batches, images only for reference.

PQ1A-12V

Part No PQ1A-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series PQ
Package Box
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number PQ1A
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 748351-PQ1A-12V
Ultra Librarian 3D Model Ultra Librarian PQ1A-12V CAD Model

Description

The Panasonic 748351-PQ1A-12V is a SPST-NO (1 Form A) power relay.

  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Contact Rating: 5A
  • Switching Voltage (Max): 250VAC, 110VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Termination Style: PC Pin
  • Mounting: Through Hole
  • Sealed: Fully Sealed
  • Operating Temperature: -40°C to 70°C
  • Packaging: Box
  • Package Quantity: 100 pcs
  • Product Status: Obsolete
