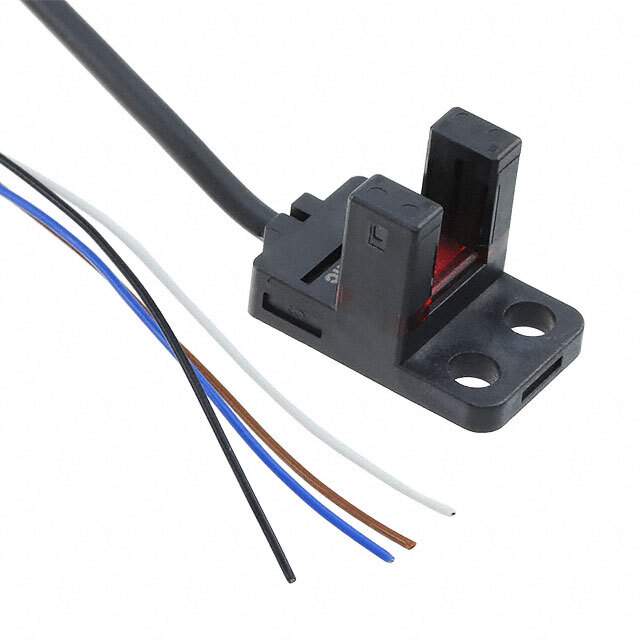

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photointerrupters - Slot Type - Logic Output
Mfr Panasonic Industrial Automation Sales
Series PM-45
Package Bulk
Sensing Distance 0.236" (6mm)
Sensing Method Through-Beam
Output Configuration NPN - Open Collector
Mounting Type Chassis Mount
Current - Supply 15 mA
Voltage - Supply 5V ~ 24V
Response Time 20µs, 80µs
Temperature Range - Operating -25°C ~ 55°C (TA)
Package / Case Module, Wire Leads, Slot Type
Other Names 1110-3907
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1234970-PM-Y45
Ultra Librarian 3D Model Ultra Librarian PM-Y45 CAD Model

Description

The PM-45 series Slot Type Optical Sensor from Panasonic Industrial Automation Sales is an NPN-Open Collector output configuration sensor.

  • Sensing Method: Through-beam
  • Sensing Distance: 0.236 inches (6 mm)
  • Module Mounting: Chassis mounted
  • Response Time: 20 to 80 microseconds
  • Current Supply: 15 mA
  • Voltage Supply: 5V to 24V
  • Operating Temperature Range: -25°C to 55°C (TA)
  • Application: Mainly used in optical sensors, transducers, and photointerrupters
  • Package: Bulk
  • Standard Package Quantity: 1
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8543.70.9860
