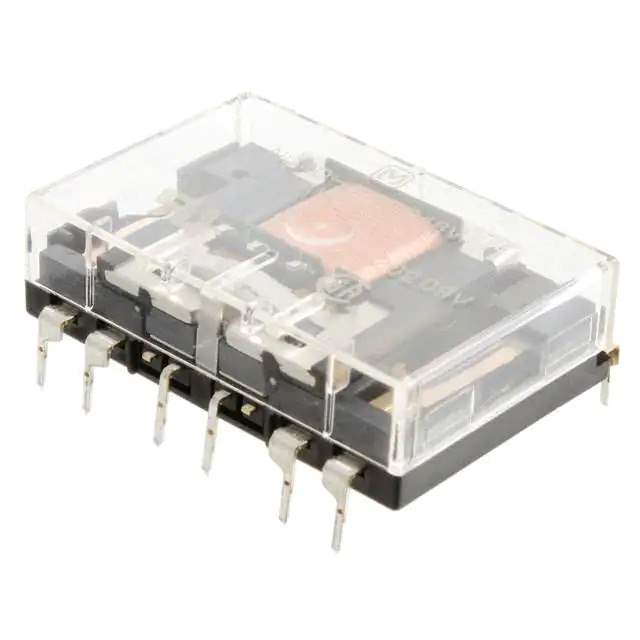

NC4D-JP-DC48V Real Image
Same model may have multiple batches, images only for reference.

NC4D-JP-DC48V

Part No NC4D-JP-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 48V / General Purpose Relay 4PDT (4 Form C) 48VDC Coil Through Hole
Datasheet
NC4D-JP-DC48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series NC
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 38.4 VDC
Must Release Voltage 4.8 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 3.2 kOhms
Base Product Number NC4D
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 928757-NC4D-JP-DC48V
Ultra Librarian 3D Model Ultra Librarian NC4D-JP-DC48V CAD Model

Description

The NC4D-JP-DC48V is a power relay from the NC series by Panasonic.

  • Termination Style: PC pin
  • Package: tube
  • Contact Form: 4PDT (4 Form C)
  • Contact Material: silver nickel (AgNi)
  • Coil Voltage: 48VDC
  • Coil Resistance: 3.2 kOhms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC
  • Mounting Type: through-hole
  • Operating Temperature: -40°C to 55°C
  • Part Status: active
