Same model may have multiple batches, images only for reference.

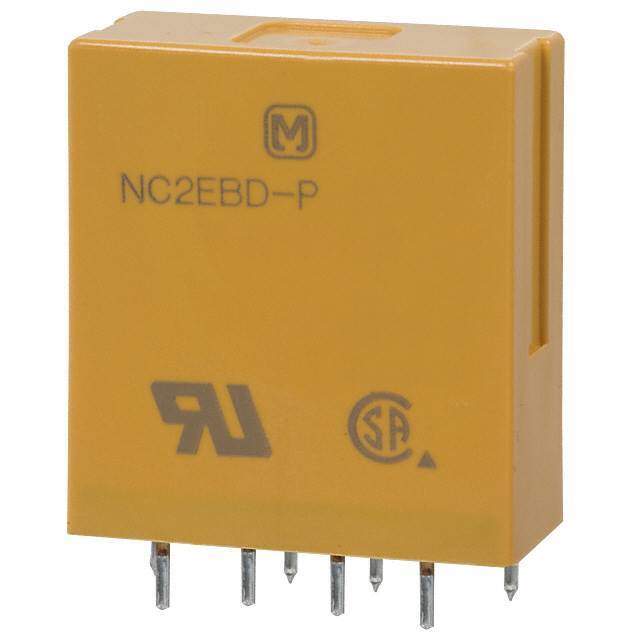

NC2EBD-P-DC12V Real Image
Same model may have multiple batches, images only for reference.

NC2EBD-P-DC12V

Part No NC2EBD-P-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
NC2EBD-P-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 20ms
Release Time 10ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 209050-NC2EBD-P-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC2EBD-P-DC12V CAD Model

Description

The Panasonic Electric Works 209050-NC2EBD-P-DC12V is a general-purpose relay with a DPDT (2 Form C) contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC - Max
  • Turn on voltage (Max): 9.6 VDC
  • Turn off voltage (Min): 1.2 VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Sealed: Amber
  • Mounting: Through hole
  • Coil Power: 360 mW
  • Packaging: Tube/Rail
  • Popularity: Medium
  • Supply and demand status: Limited
