NC2D-JP-DC48V
Same model may have multiple batches, images only for reference.

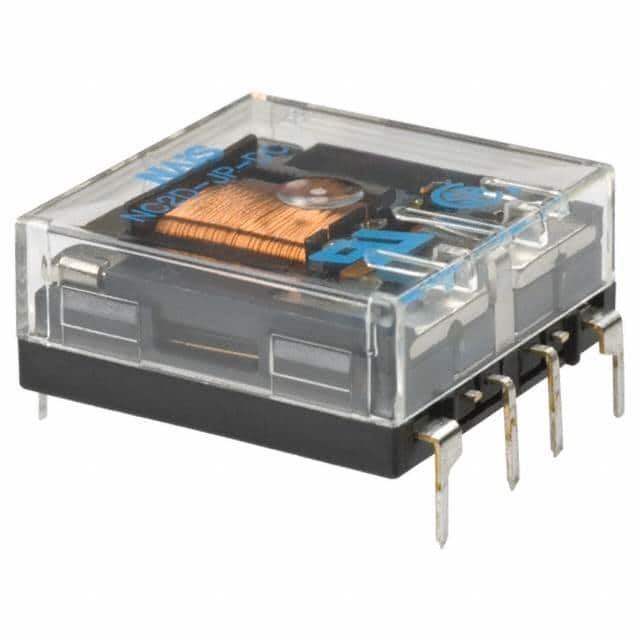

NC2D-JP-DC48V

Part No NC2D-JP-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 48V / General Purpose Relay DPDT (2 Form C) 48VDC Coil Through Hole
Datasheet
NC2D-JP-DC48V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series NC
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC - Max
Coil Current 7.5 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 38.4 VDC
Must Release Voltage 4.8 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 6.4 kOhms
Base Product Number NC2D
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 928756-NC2D-JP-DC48V
Ultra Librarian 3D Model Ultra Librarian NC2D-JP-DC48V CAD Model

Description

The Panasonic NC2D-JP-DC48V is a power relay designed for various applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 5A
  • Coil Voltage: 48VDC
  • Coil Resistance: 6.4 kOhms
  • Switching Voltage: 250VAC
  • Coil Current: 7.5 mA
  • Operate Time: 20 ms
  • Relay Type: non-latching
  • Mounting: through-hole mounting
  • Operating Temperature: -40°C to 70°C
  • Feature: compact size and reliable performance
