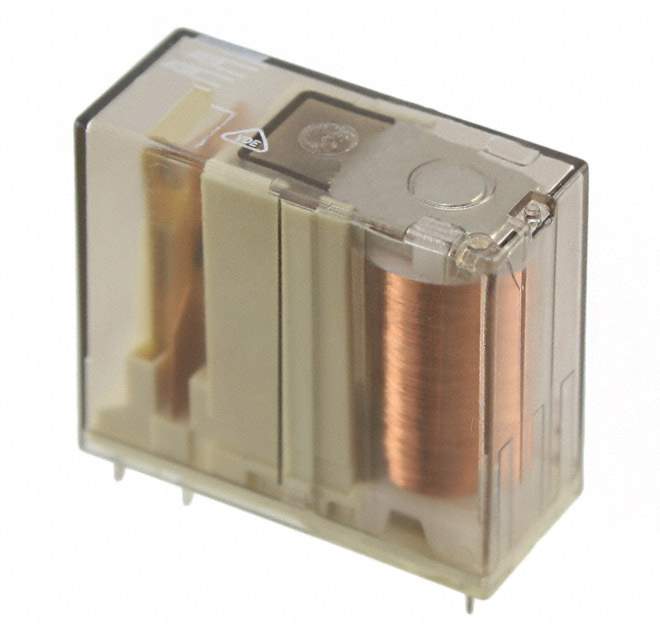

RP3SL005 Real Image
Same model may have multiple batches, images only for reference.

RP3SL005

Part No RP3SL005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V
Datasheet
RP3SL005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 92.6mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 14ms
Release Time 12ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 500 mW
Coil Resistance 54 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 210850-RP3SL005
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RP3SL005 CAD Model

Description

This is a general purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Win Source Part Number: 210850-RP3SL005
  • Packaging: Tube/rail
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: Through hole
  • Coil Voltage: 5VDC
  • Contact Rating: 16A
  • Supply and Demand: Limited
