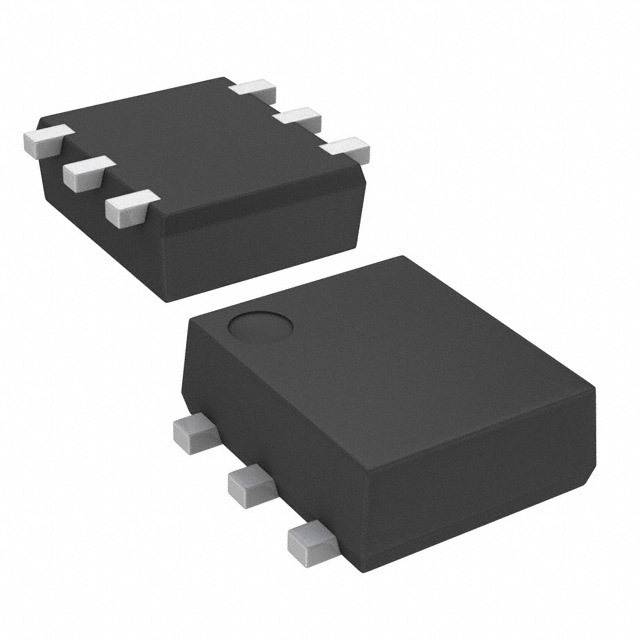

MTM861240LBF Panasonic
Same model may have multiple batches, images only for reference.

MTM861240LBF

Part No MTM861240LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 2A WSSMINI6-F1
Datasheet
MTM861240LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 400pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 130 mOhm @ 1A, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSSMini6-F1
Dimension 6-SMD, Flat Leads
Win Source Part Number 101955-MTM861240LBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MTM861240LBF CAD Model

Description

The MTM861240LBF is a MOSFET component manufactured by Panasonic Electronic Components. It is a P-channel MOSFET with a maximum power dissipation of 540mW (Ta).

  • Maximum Gate-Source Voltage: ±10V
  • Maximum Rds On @ Id, Vgs: 130 mOhm @ 1A, 4V
  • Active component: With a balanced supply and demand status
  • Mainly used in: Discrete semiconductor products
  • Component is packaged in: A 6-SMD, flat leads case/package
