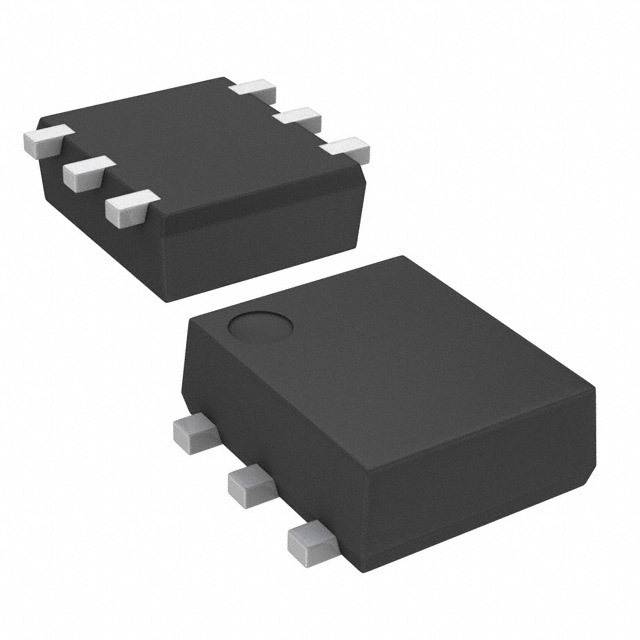

MTM761230LBF Panasonic
Same model may have multiple batches, images only for reference.

MTM761230LBF

Part No MTM761230LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 3A WSMINI6
Datasheet
MTM761230LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 1000pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 700mW (Ta)
Maximum Rds On at Id,Vgs 55 mOhm @ 1A, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSMini6-F1-B
Dimension 6-SMD, Flat Leads
Win Source Part Number 024585-MTM761230LBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MTM761230LBF CAD Model

Description

The Panasonic Electronic Components MTM761230LBF is a P-Channel MOSFET with a maximum power dissipation of 700mW @ Ta. It is packaged in a 6-SMD, flat leads WSMini6-F1-B case and can handle a drain-source breakdown voltage of 20V.

  • Continuous Drain Current: 3A @ 25°C
  • Gate-Source Threshold Voltage: 1.3V @ 1mA
  • Maximum Input Capacitance: 1000pF @ 10V
  • Maximum Gate-Source Voltage: ±10V
  • Popularity: medium
  • Supply and Demand: sufficient
