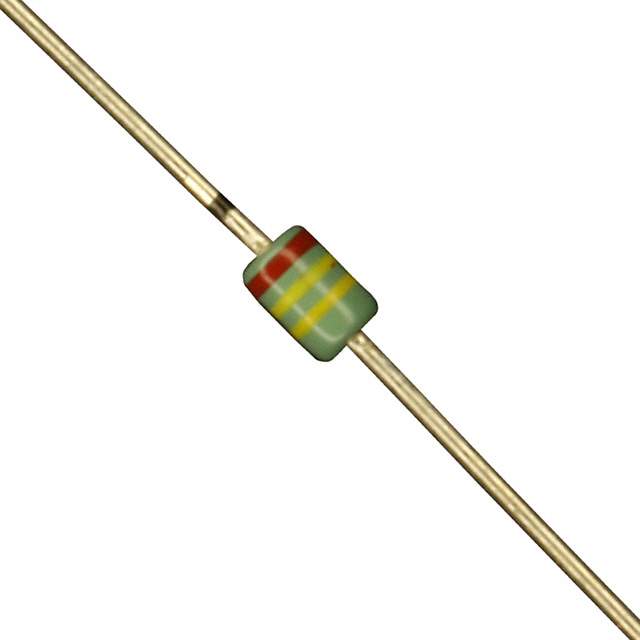

MAZ40240LF Real Image
Same model may have multiple batches, images only for reference.

MAZ40240LF

Part No MAZ40240LF
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 2.4V 370MW DO34 / Zener Diode 2.4 V 370 mW ±8% Through Hole DO34-A2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panasonic Electronic Components
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 2.4 V
Tolerance ±8%
Power - Max 370 mW
Impedance (Max) (Zzt) 100 Ohms
Current - Reverse Leakage @ Vr 120 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Mounting Type Through Hole
Package / Case DO-204AG, DO-34, Axial
Supplier Device Package DO34-A2
Base Product Number MAZ4024
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names MAZ40240LFTB,MAZ40240LFCT
Standard Package 2,000
Win Source Part Number 1075908-MAZ40240LF
Ultra Librarian 3D Model Ultra Librarian MAZ40240LF CAD Model

Description

The MAZ40240LF is a zener diode from Panasonic Electronic Components.

  • Voltage: 2.4V
  • Power: 370mW
  • Tolerance: ±8%
  • Maximum Impedance: 100 Ohms
  • Mounting Type: Through-Hole
  • Package: DO-204AG, DO-34, Axial
  • Status: Obsolete
  • Alternatives: BZX79C2V4, BZX79C2V7, TZX2V4B-TR, TZX2V4A-TR, TZX2V4A-TAP, and BZX79C2V4-T50A
  • ECCN: EAR99
