Same model may have multiple batches, images only for reference.

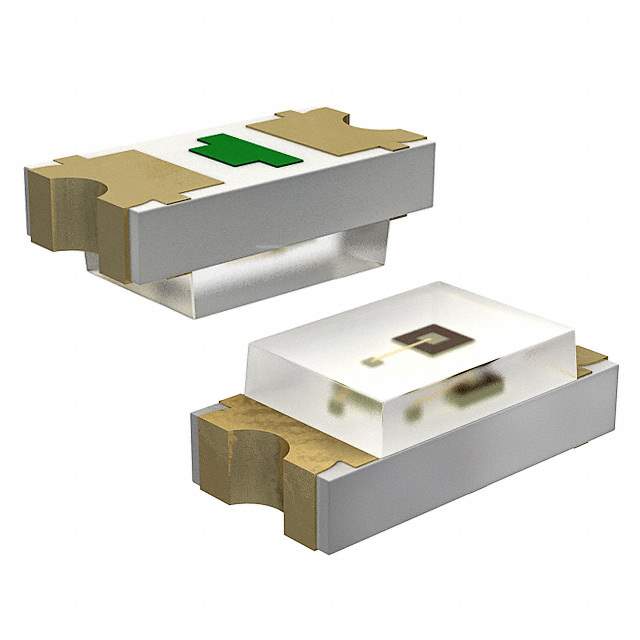

LNJ847W83RA Real Image
Same model may have multiple batches, images only for reference.

LNJ847W83RA

Part No LNJ847W83RA
Manufacturer Panasonic
Catalog LED Indication - Discrete
Description LED ORANGE 1005 SMD / Orange 620nm LED Indication - Discrete 1.95V 0402 (1005 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Panasonic Electronic Components
Package Tape & Reel
Product Status Obsolete
Color Orange
Configuration Standard
Millicandela Rating 30mcd
Lens Style Rectangle with Flat Top
Lens Size 0.70mm x 0.50mm
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 5mA
Mounting Type Surface Mount
Wavelength - Dominant 620nm
Wavelength - Peak 630nm
Package / Case 0402 (1005 Metric)
Supplier Device Package 1005 Type
Size / Dimension 1.00mm L x 0.50mm W
Height (Max) 0.25mm
Base Product Number LNJ847
Standard Package 8,000
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1339615-LNJ847W83RA
Ultra Librarian 3D Model Ultra Librarian LNJ847W83RA CAD Model

Description

The LNJ847W83RA is a discrete LED indication that comes with an orange color and a millicandela rating of 30mcd.

  • Color: Orange
  • Millicandela Rating: 30mcd
  • Viewing Angle: Not specified
  • Wavelength (Dominant): 620nm
  • Wavelength (Peak): 630nm
  • Packaging: Tape and Reel
  • Standard Package: 8,000
  • Size and Dimension: 1.00mm (Length) x 0.50mm (Width)
  • Package/Case: 0402 (1005 Metric)
  • Supplier Device Package: 1005 Type
  • Operating Temperature: Not specified
  • Supplier: Panasonic Electronic Components
  • Base Product Number: LNJ847
  • MSL Level: 3 (168 hours)
  • HTSUS Code: 8541.41.0000
