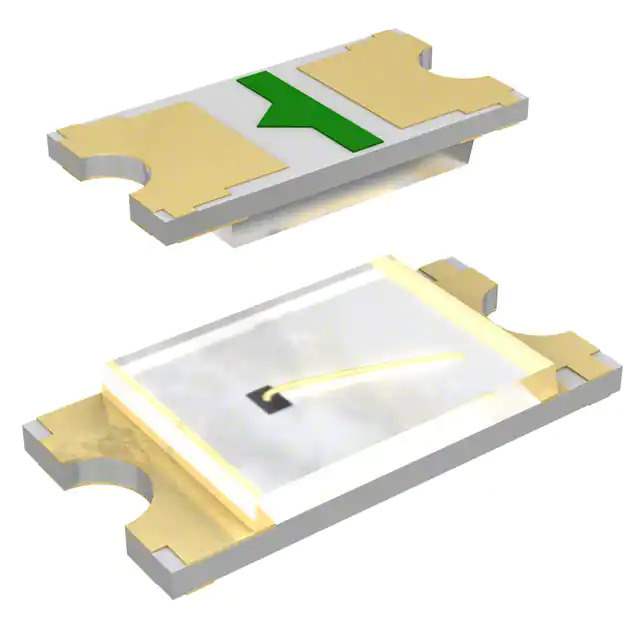

LNJ837W86RA Real Image
Same model may have multiple batches, images only for reference.

LNJ837W86RA

Part No LNJ837W86RA
Manufacturer Panasonic
Catalog LED Indication - Discrete
Description LED ORANGE ESS II SMD / Orange 605nm LED Indication - Discrete 1.95V 0603 (1608 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Color Orange
Configuration Standard
Millicandela Rating 27.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 5mA
Mounting Type Surface Mount
Wavelength - Dominant 605nm
Wavelength - Peak 610nm
Package / Case 0603 (1608 Metric)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.25mm
Base Product Number LNJ837
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 923553-LNJ837W86RA
Ultra Librarian 3D Model Ultra Librarian LNJ837W86RA CAD Model

Description

The LNJ837W86RA is an orange LED indication component that belongs to the optoelectronics category.

  • Manufacturer: Panasonic
  • Product Name: LNJ837W86RA
  • Category: Optoelectronics
  • Package: Tape and reel
  • Size: 1.60mm L x 0.80mm W
  • Millicandela Rating: 27.5mcd
  • Forward Voltage: 1.95V
  • Current Test: 5mA
  • Dominant Wavelength: 605nm
  • Peak Wavelength: 610nm
  • Mounting: Surface mountable
  • Package/Case Size: 0603 (1608 Metric)
  • Series: LNJ837 series
  • Status: Obsolete
  • Moisture Sensitivity Level: 3
