Same model may have multiple batches, images only for reference.

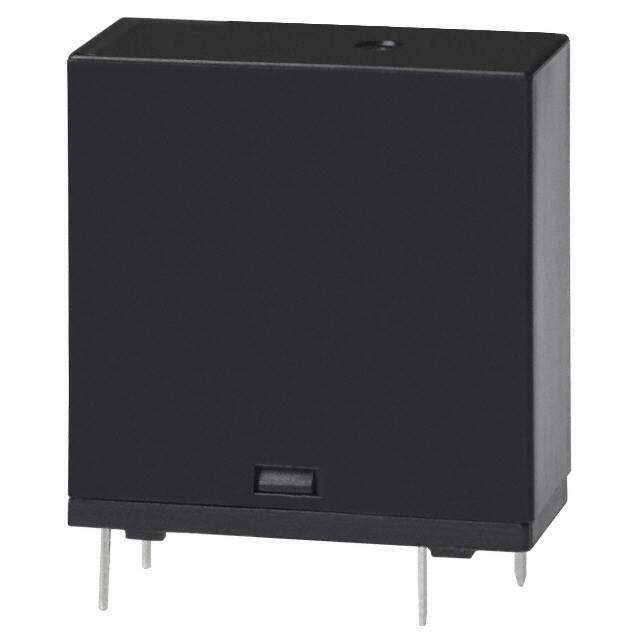

LKS1AF-5V Real Image
Same model may have multiple batches, images only for reference.

LKS1AF-5V

Part No LKS1AF-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 5A 5V
Datasheet
LKS1AF-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 50mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 100 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 206270-LKS1AF-5V
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, HVAC, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian LKS1AF-5V CAD Model

Description

This relay is manufactured by Panasonic Electric Works and has a Win Source Part Number of 206270-LKS1AF-5V.

  • Supply and Demand Status: sufficient
  • Contact Rating: 5A
  • Switching Voltage: 277VAC
  • Contact Form: SPST-NO
  • Coil Type: non-latching
  • Sealed: sealed-flux protection
  • Mounting: through-hole
  • Status: obsolete (EOL)
  • Operating Temperature Range: -40°C to 70°C
