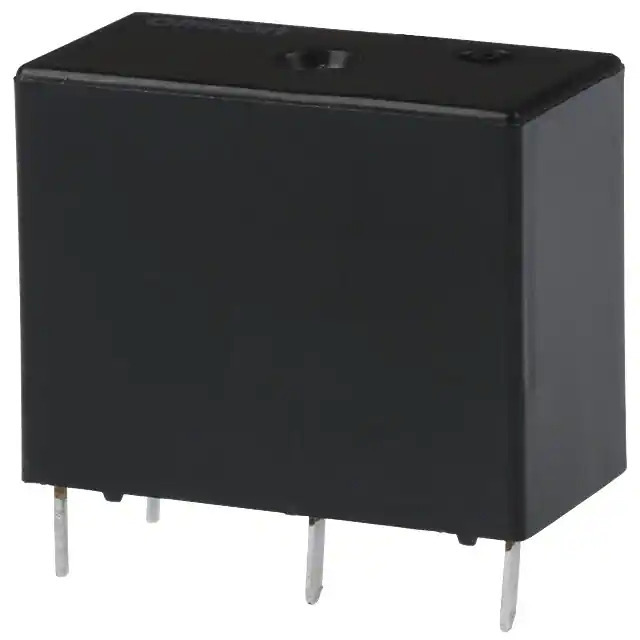

G5Q-1A DC12 Omron
Same model may have multiple batches, images only for reference.

G5Q-1A DC12

Part No G5Q-1A DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5Q
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number G5Q
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373435-G5Q-1A DC12
Ultra Librarian 3D Model Ultra Librarian G5Q-1A DC12 CAD Model

Description

The G5Q-1A DC12 is a power relay from Omron Electronics Inc-EMC Div.

  • Series: G5Q
  • Mounting Type: Through-Hole
  • Coil Voltage: 12VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 10A
  • Switching Voltage: 277VAC, 30VDC Maximum
  • Protection: Sealed, Flux
  • Coil Type: Non-Latching
  • Coil Current: 16.7mA
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 0.6VDC
  • Operate Time: 10ms
  • Release Time: 5ms
  • Coil Resistance: 720 Ohms
  • Application: General Purpose
