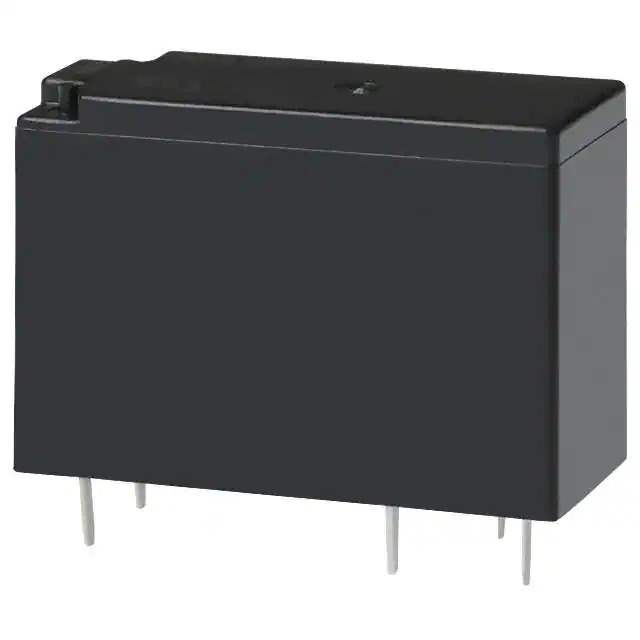

JW1FSN-B-DC24V Real Image
Same model may have multiple batches, images only for reference.

JW1FSN-B-DC24V

Part No JW1FSN-B-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number JW1FSN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 922445-JW1FSN-B-DC24V
Ultra Librarian 3D Model Ultra Librarian JW1FSN-B-DC24V CAD Model

Description

The JW1FSN-B-DC24V is a power relay from the JW series by Panasonic.

  • Contact Configuration: SPDT (1 Form C)
  • Contact Rating: 10 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Mounting Style: Through-Hole
  • Sealing: Fully Sealed
  • Temperature Range: -40°C to 85°C
  • Package Quantity: 100 pcs
  • Status: Active
