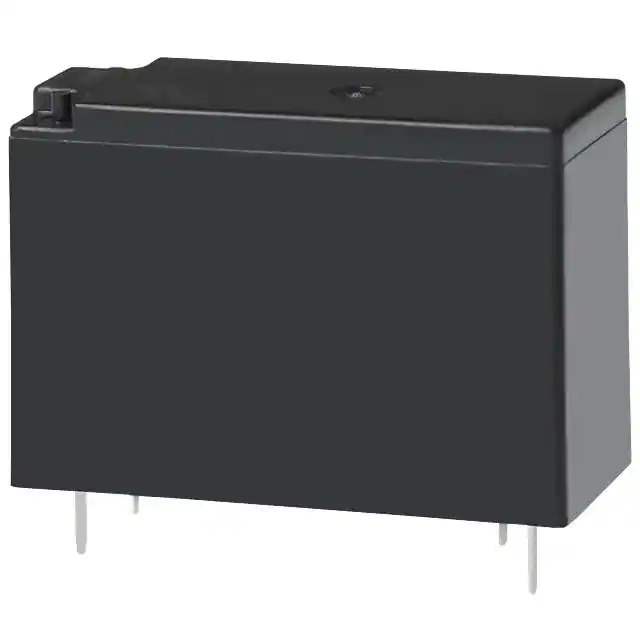

JW1ASN-DC48V-F Real Image
Same model may have multiple batches, images only for reference.

JW1ASN-DC48V-F

Part No JW1ASN-DC48V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 11 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class E
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 4.4 kOhms
Base Product Number JW1ASN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 876249-JW1ASN-DC48V-F
Ultra Librarian 3D Model Ultra Librarian JW1ASN-DC48V-F CAD Model

Description

The 876249-JW1ASN-DC48V-F is a power relay from Panasonic.

  • Category: Power Relays (Over 2 Amps)
  • Series: JW
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 48VDC
  • Coil Resistance: 4.4 kOhms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC
  • Operate Time: 15ms
  • Release Time: 5ms
  • Protection: Sealed, Fully Protected
  • Operating Temperature: -40°C to 60°C
