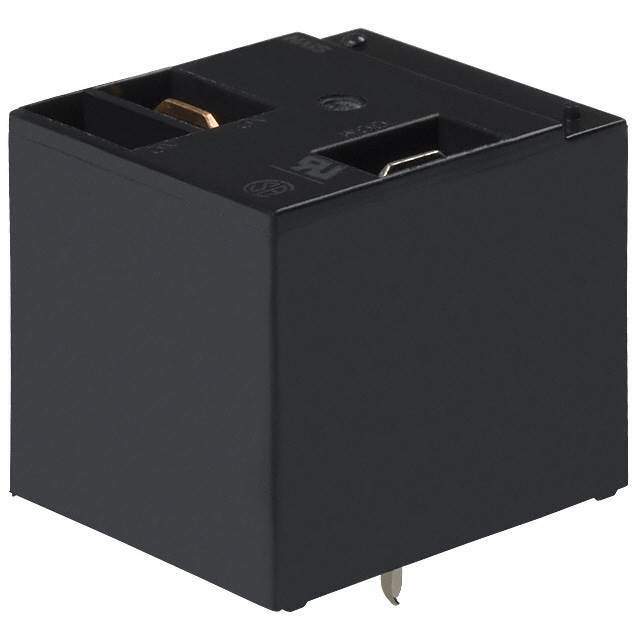

JTN1AS-TMP-F-DC15V Real Image
Same model may have multiple batches, images only for reference.

JTN1AS-TMP-F-DC15V

Part No JTN1AS-TMP-F-DC15V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description High switching capacity 1a/1c 30A power relays Heating & ventilation Home appliance | RELAY GEN PURPOSE SPST 30A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 15VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Max
Coil Current 53.3mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 11.25 VDC
Must Release Voltage 1.5 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 281 Ohms
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Win Source Part Number 1191774-JTN1AS-TMP-F-DC15V
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JTN1AS-TMP-F-DC15V CAD Model

Description

The JTN1AS-TMP-F-DC15V is a general-purpose relay from Panasonic Electric Works.

  • Type: Single-pole single-throw (SPST-NO)
  • Contact Rating (Current): 30A
  • Switching Voltage: 277VAC max
  • Coil Voltage: 15VDC
  • Coil Resistance: 281 ohms
  • Coil Current: 53.3mA
  • Must Operate Voltage: 11.25VDC
  • Must Release Voltage: 1.5VDC
  • Packaging: Bulk
  • Mounting: Through hole
  • Supply and Demand: Limited
  • Popularity: Medium
  • Manufacturer Homepage: Available on the manufacturer's homepage.
