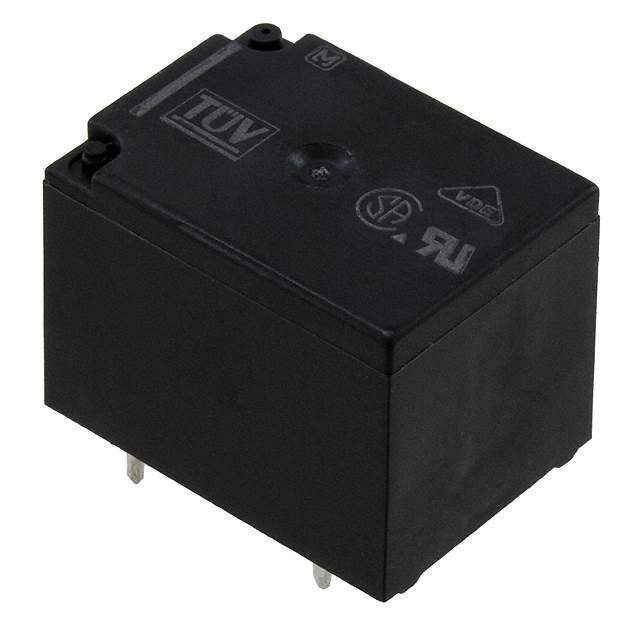

JS1F-24V-F Real Image
Same model may have multiple batches, images only for reference.

JS1F-24V-F

Part No JS1F-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V / Power Relay 24VDC 5DC/10AAC SPDT(22x16x16.4)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series JS
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Turn On Voltage (Maximum) 16.8 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Operating Temperature Range -40°C ~ 70°C
Win Source Part Number 777698-JS1F-24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name JS
Introduction Date December 01, 2003
ECCN EAR99
Country of Origin Japan, Thailand
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian JS1F-24V-F CAD Model

Description

The Panasonic Electric Works JS1F-24V-F is a sealed, flux-protected relay.

  • Termination: PC Pin
  • Mounting Style: Through Hole
  • Operating Temperature: -40°C ~ 70°C
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15mA
  • Operate Time: 10ms
  • Relay Type: General
  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC, 100VDC - Max
  • Release Time: 10ms
  • Coil Power: 360 mW
  • Series: JS
  • Packaging: 100 units per package
