Same model may have multiple batches, images only for reference.

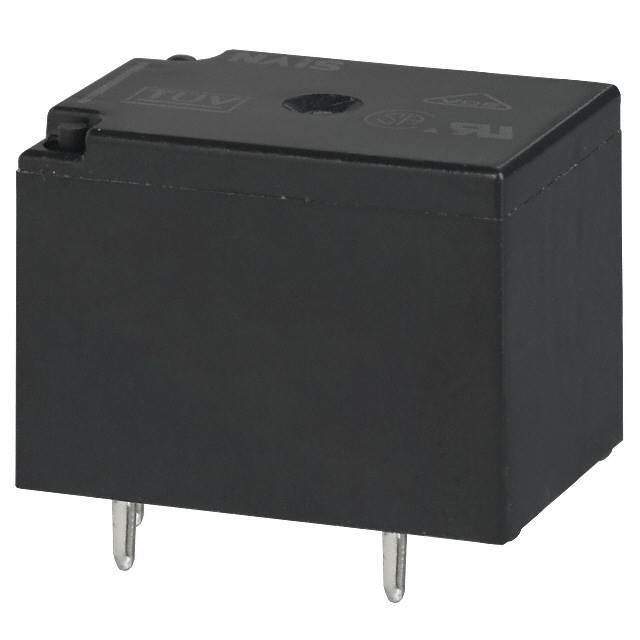

JS1A-B-12V-F Real Image
Same model may have multiple batches, images only for reference.

JS1A-B-12V-F

Part No JS1A-B-12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / Power Relay 12VDC 5DC/10AAC SPST-NO(22x16x16.4)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series JS
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Turn On Voltage (Maximum) 8.4 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 10ms
Release Time 10ms
Features Insulation - Class B, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 360 mW
Coil Resistance 400 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 777697-JS1A-B-12V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name JS
Introduction Date April 13, 2000
ECCN EAR99
Country of Origin Japan, Thailand
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian JS1A-B-12V-F CAD Model

Description

The Panasonic Electric Works JS1A-B-12V-F is a general relay.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC, 100VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
  • Mounting: Through Hole
  • Termination: PC Pin
  • Alternative Parts (Cross-Reference): JS1A-B-12V, JS1A-B-12V-F, JS1A-B-24V-F, JS1A-B-5V-F
  • Introduction Date: April 13, 2000
