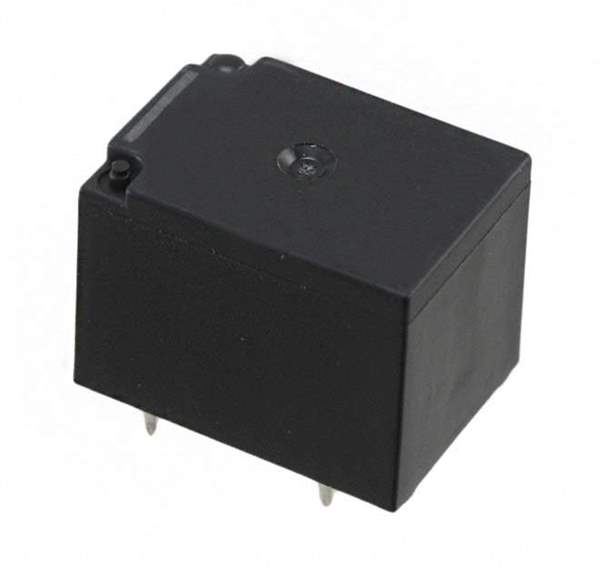

JS1a-12V Real Image
Same model may have multiple batches, images only for reference.

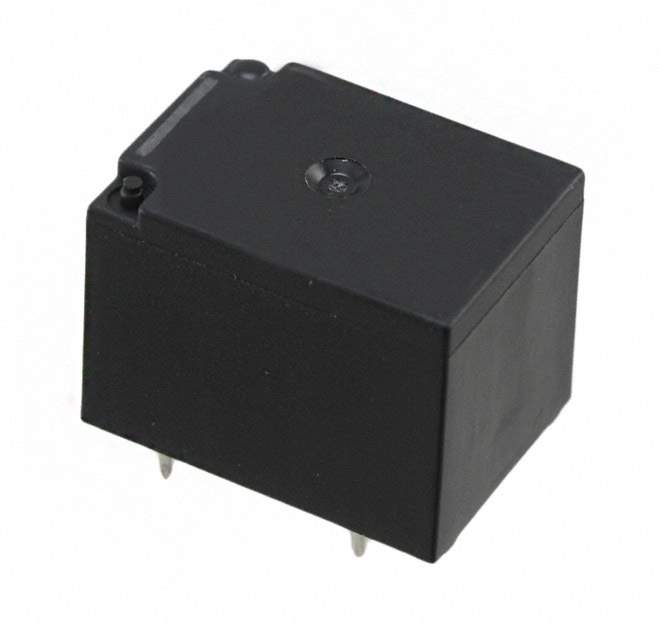

JS1a-12V

Part No JS1a-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description ULTRA-MINIATURE PC BOARD TYPE POWER RELAY | RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 30.0mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 400 Ohms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191749-JS1a-12V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JS1a-12V CAD Model

Description

The Panasonic Electric Works JS1a-12V relay is a general-purpose non-latching relay with a PC pin termination style and a through-hole mounting style.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver alloy
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Coil Current: 30.0mA
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC and 100VDC (max)
  • Sealing: Fully sealed
  • Temperature Range: -40°C to 70°C
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 100
