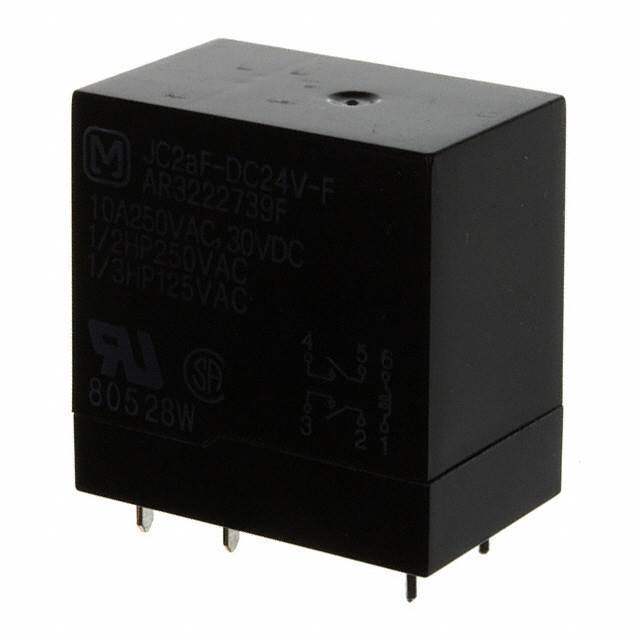

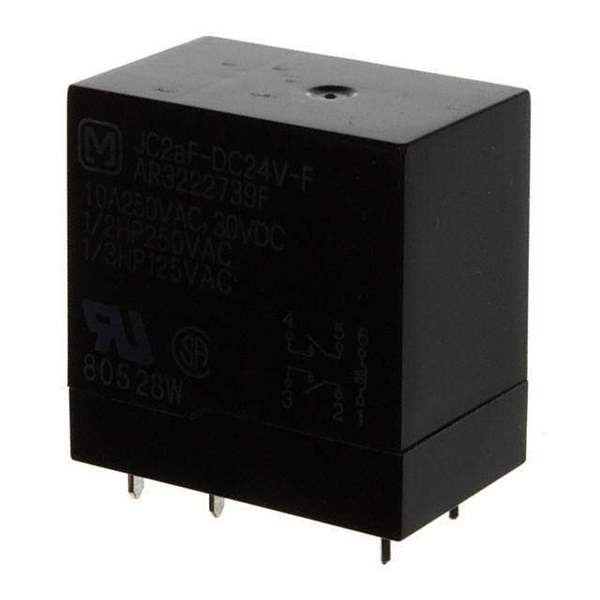

JC2aF-DC5V Real Image
Same model may have multiple batches, images only for reference.

JC2aF-DC5V

Part No JC2aF-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 10A 5V
Datasheet
JC2aF-DC5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 200mA
Coil Voltage 5VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 4 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 30ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 1 W
Coil Resistance 25 Ohms
Temperature Range - Operating -50°C to 60°C
Win Source Part Number 205730-JC2aF-DC5V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JC2aF-DC5V CAD Model

Description

The Panasonic Electric Works Relay is a general-purpose relay with DPST (2 Form A) contact form and a through-hole mounting style.

  • Coil Voltage: 5VDC
  • Contact Rating: 10A
  • Switching Voltage: 250VAC - Max
  • Operating Temperature: -50°C to 60°C
  • Win Source Part Number: 205730-JC2aF-DC5V
