Same model may have multiple batches, images only for reference.

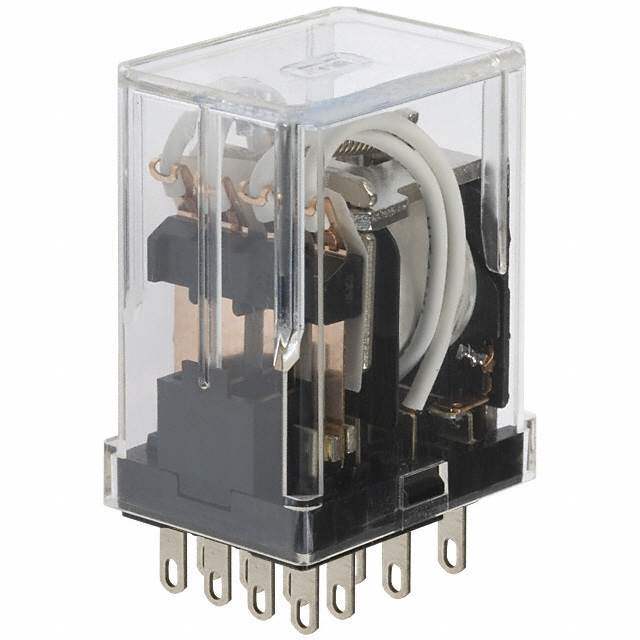

HC4-H-DC12V Real Image
Same model may have multiple batches, images only for reference.

HC4-H-DC12V

Part No HC4-H-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 12V
Datasheet
HC4-H-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 75mA
Coil Voltage 12VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 20ms
Release Time 20ms
Mounting Socketable
Termination Style Plug In
Coil Power 900 mW
Coil Resistance 160 Ohms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 204591-HC4-H-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC4-H-DC12V CAD Model

Description

The Panasonic Electric Works HC4-H-DC12V is a 4PDT (4 Form C) plug-in relay that is designed for general purpose applications.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Coil Current: 75mA
  • Operate Time: 20ms
  • Release Time: 20ms
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC - Max
  • Turn On Voltage (Max): 9.6 VDC
  • Turn Off Voltage (Min): 1.2 VDC
  • Supply and Demand: Limited
