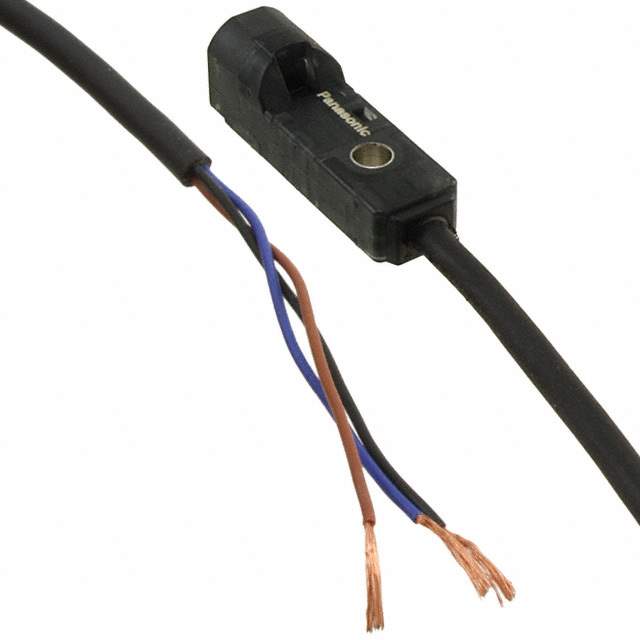

GX-H8A Real Image
Same model may have multiple batches, images only for reference.

GX-H8A

Part No GX-H8A
Manufacturer Panasonic
Catalog Proximity Sensors
Description SENSOR PROX INDUCTIVE 2.1MM MOD /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Proximity Sensors - Industrial
Mfr Panasonic Industrial Automation Sales
Series GX
Package Box
Sensor Type Inductive
Sensing Distance 0.083" (2.1mm)
Output Type NPN-NO, 3-Wire
Response Frequency 500Hz
Shielding Unshielded
Material - Body Plastic
Voltage - Supply 12V ~ 24V
Termination Style Cable Leads
Temperature Range - Operating -25°C ~ 70°C
Ingress Protection IP68
Indicator LED
Package / Case Module
Base Product Number GX-H8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names 1110-2214
Standard Package 1
Win Source Part Number 1061447-GX-H8A
Ultra Librarian 3D Model Ultra Librarian GX-H8A CAD Model

Description

The GX inductive proximity sensor is a reliable product with a sensing distance of 0.083" (2.1mm) and a response frequency of 500Hz.

  • Output Type: NPN-NO 3-wire
  • Material: Plastic
  • Voltage Supply: 12V ~ 24V
  • Operating Temperature: -25°C ~ 70°C
