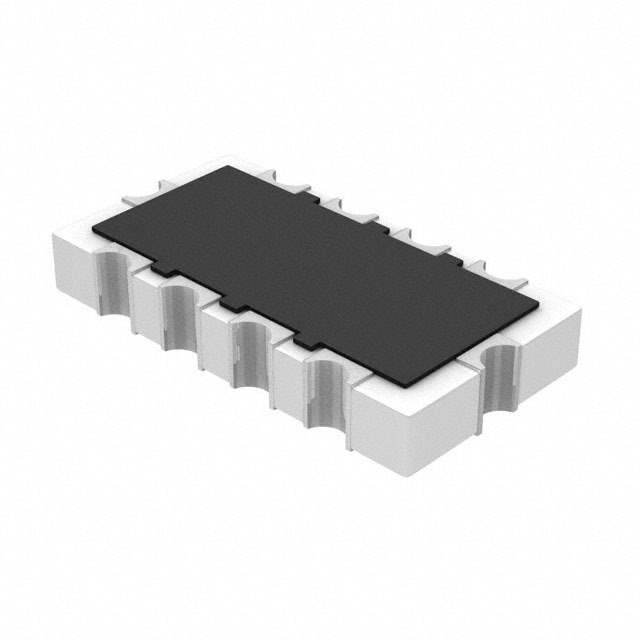

EZA-ST53AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST53AAAJ

Part No EZA-ST53AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 470 OHM/100PF SMD
Datasheet
EZA-ST53AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 470
Values R = 470 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 107219-EZA-ST53AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-ST53AAAJ CAD Model

Description

EZA-ST53AAAJ Electronic Component

Engineered for precision and adaptability, the EZA-ST53AAAJ offers high-performance capabilities for cutting-edge electronic applications. Its comprehensive design ensures compatibility and effectiveness in diverse environments.

  • Applications:
    • Smart grid technology
    • Advanced computing solutions
    • Renewable energy systems
    • Modern surveillance systems
  • Features:
    • Optimized for high-frequency operation
    • Advanced thermal management
    • Superior signal quality
    • Compliance with global safety standards
  • Benefits:
    • Promotes energy efficiency
    • Supports dynamic technological systems
    • Ensures top-tier performance standards

The EZA-ST53AAAJ is a versatile component designed to elevate the performance and reliability of your electronic projects.
