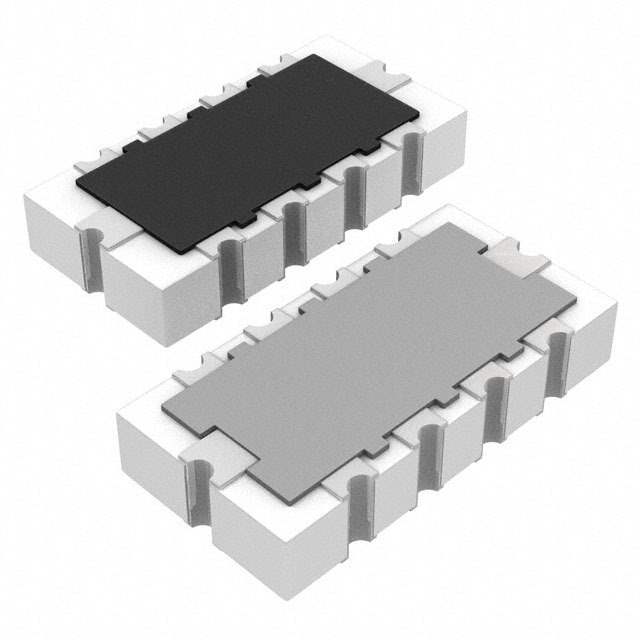

EZA-DT12AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT12AAAJ

Part No EZA-DT12AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 22 OHM/47PF SMD
Datasheet
EZA-DT12AAAJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 22
Values R = 22 Ohms, C = 47pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 110101-EZA-DT12AAAJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EZA-DT12AAAJ CAD Model

Description

EZA-DT12AAAJ

The EZA-DT12AAAJ is engineered for precision and efficiency. It is the perfect choice for applications requiring high stability and performance consistency.

  • Applications:
    • Power supply systems
    • Automotive electronics
    • Medical devices
    • Aerospace and defense

Features and Benefits:

  • High precision operation
  • Stable performance over a wide frequency range
  • Low Noise
  • High thermal tolerance

Additional Details: Tailored for critical applications, this component delivers superior accuracy and performance reliability, making it a go-to solution for engineers worldwide.
