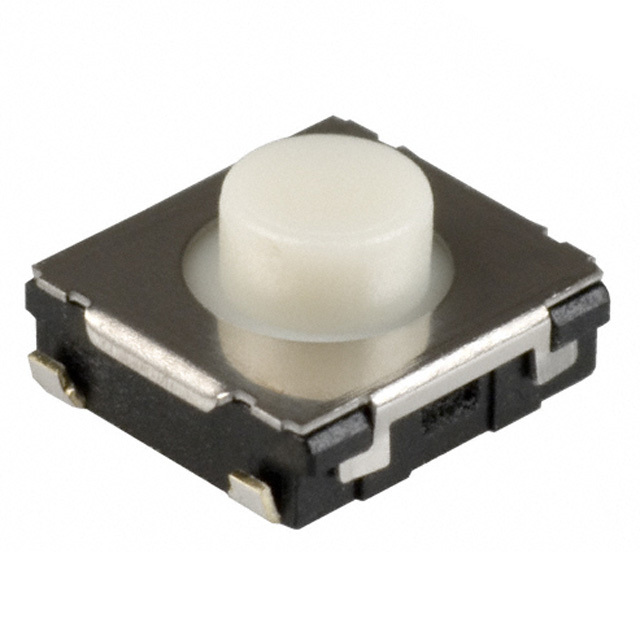

Same model may have multiple batches, images only for reference.
EVQ-Q2D01W Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EVQ-Q2D01W

Part No EVQ-Q2D01W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 50gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1563685-EVQ-Q2D01W
Ultra Librarian 3D Model Ultra Librarian EVQ-Q2D01W CAD Model
