Same model may have multiple batches, images only for reference.

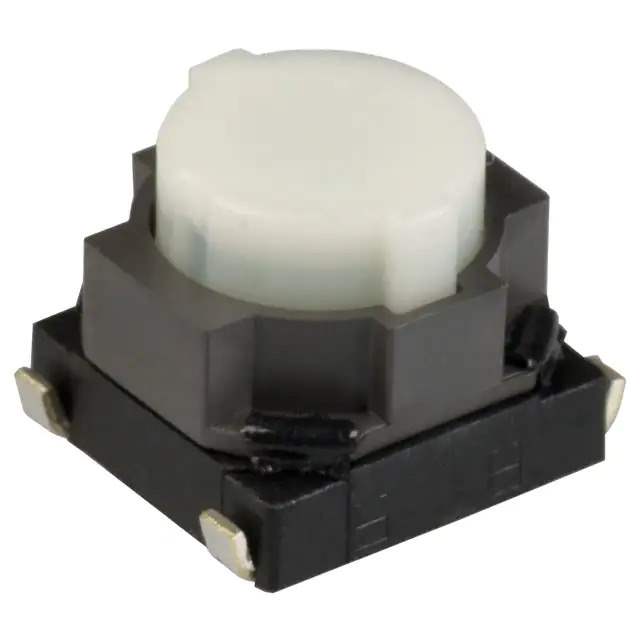

EVQ-P1K05M Real Image
Same model may have multiple batches, images only for reference.

EVQ-P1K05M

Part No EVQ-P1K05M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQP1
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Operating Force 220gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 1.00mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-P1
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 849897-EVQ-P1K05M
Ultra Librarian 3D Model Ultra Librarian EVQ-P1K05M CAD Model

Description

The Panasonic EVQ-P1K05M is a tactile switch. Bolded product name: EVQ-P1K05M. Manufacturer is Panasonic.

  • Series: EVQP1
  • Switch Type: SPST-NO
  • Actuator Travel: 1.00mm
  • Operating Force: 220gf
  • Mechanical Life: 100,000 Cycles
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Standard Package Quantity: 2,000 pcs
  • Temperature Range: -40°C to 85°C
