Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAX
Package Tape & Reel
Product Status Active
Circuit SPST-NO x 2
Switch Function Off-Mom-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.70mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Operating Force 70/200gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.07mm, 0.16mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AX
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871297-EVP-AXBA1A
Ultra Librarian 3D Model Ultra Librarian EVP-AXBA1A CAD Model

Description

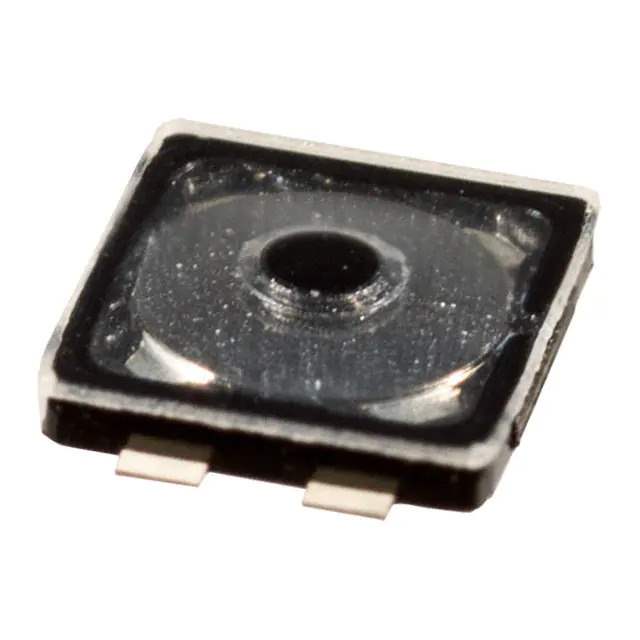

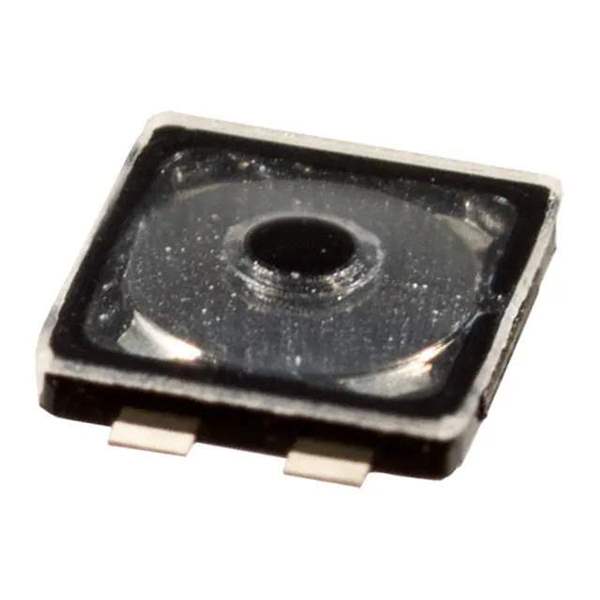

The 871297-EVP-AXBA1A is a tactile switch designed for various applications.

  • Series: EVPAX
  • Circuit Configuration: SPST-NO x 2
  • Termination Style: SMD (SMT) tab
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 8,000 pcs
  • Outline: 3.00mm x 2.60mm
  • Actuation Force: 70/200gf
  • Mechanical Life: 100,000 cycles
  • Manufacturer: Panasonic
