Same model may have multiple batches, images only for reference.

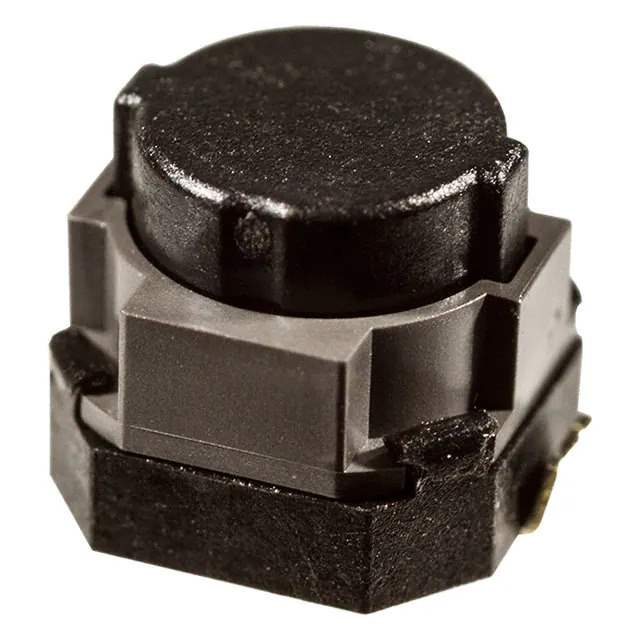

EVP-ASDC1A Real Image
Same model may have multiple batches, images only for reference.

EVP-ASDC1A

Part No EVP-ASDC1A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAS
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Round Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Operating Force 250gf
Temperature Range - Operating -40°C ~ 90°C
Switch Travel 1.30mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AS
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918766-EVP-ASDC1A
Ultra Librarian 3D Model Ultra Librarian EVP-ASDC1A CAD Model

Description

The 918766-EVP-ASDC1A is a tactile switch designed for various applications.

  • Series: EVPAS series
  • Circuit Configuration: SPST-NO
  • Termination Style: J Lead
  • Mounting: Surface mount mounting
  • Package: Tape & reel format
  • Standard Package: 2,000 pcs
  • Outline: 6.10mm x 6.00mm
  • Actuation Force: 250gf
  • Mechanical Life: 100,000 cycles
  • Switch Manufacturer: Panasonic
