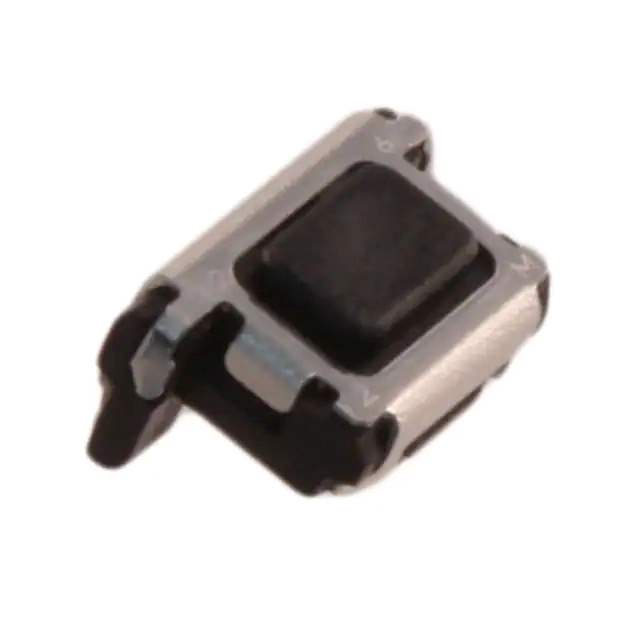

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAE
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Type Edge Mount, Right Angle
Actuator Length, Right Angle 1.70mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 4.80mm x 2.20mm
Illumination Non-Illuminated
Operating Force 350gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 200,000 Cycles
Base Product Number EVP-AE
Standard Package 3,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918761-EVP-AEJB2A
Ultra Librarian 3D Model Ultra Librarian EVP-AEJB2A CAD Model

Description

The 918761-EVP-AEJB2A is a tactile switch from Panasonic's EVPAE series.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Termination Style: SMD (SMT) tab
  • Actuator Type: Rectangular button
  • Switch Travel: 0.15mm
  • Contact Rating: 0.02A @ 15VDC
  • Actuator Orientation: Side Actuated
  • Outline Dimensions: 4.80mm x 2.20mm
  • Illumination: Non-Illuminated
  • Operating Force: 350gf
  • Mechanical Life: 200,000 cycles
  • Mounting Type: Edge mount, right angle
  • Operating Temperature Range: -40°C to 85°C
  • Package: Tape & Reel
  • Standard Package Quantity: 3,500 pcs
  • ECCN: EAR99
  • HTSUS Code: 8536.50.9031
  • Base Product Number: EVP-AE
  • Manufacturer: Panasonic
  • Product Status: Active
