Same model may have multiple batches, images only for reference.

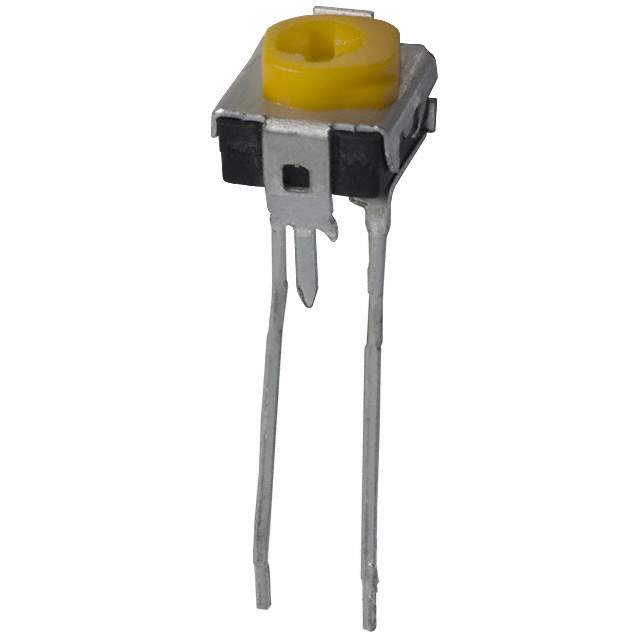

EVN-DJAA03B54 Real Image
Same model may have multiple batches, images only for reference.

EVN-DJAA03B54

Part No EVN-DJAA03B54
Manufacturer Panasonic
Catalog Potentiometers, Variable Resistors
Description TRIMMER 50K OHM 0.1W PC PIN TOP / 50 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Datasheet
EVN-DJAA03B54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Panasonic Electronic Components
Series EVN
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Resistance 50 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.264" x 0.252" Face (6.70mm x 6.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names DJA54CT,DJA54TB,DJA54TB-NDR,EVNDJAA03B54,DJA54CT-NDR
Standard Package 1,000
Win Source Part Number 992322-EVN-DJAA03B54
Ultra Librarian 3D Model Ultra Librarian EVN-DJAA03B54 CAD Model

Description

The Panasonic Electronic Components EVN-DJAA03B54 is a trimmer potentiometer that has a rectangular dimension of 0.264" x 0.252" face.

  • Manufacturer: Panasonic Electronic Components
  • Product: EVN-DJAA03B54
  • Power: 0.1 W
  • Resistance: 50 kOhms
  • Tolerance: ±30%
  • Standard Package: 1,000
  • Status: Obsolete and is no longer recommended for new designs.
