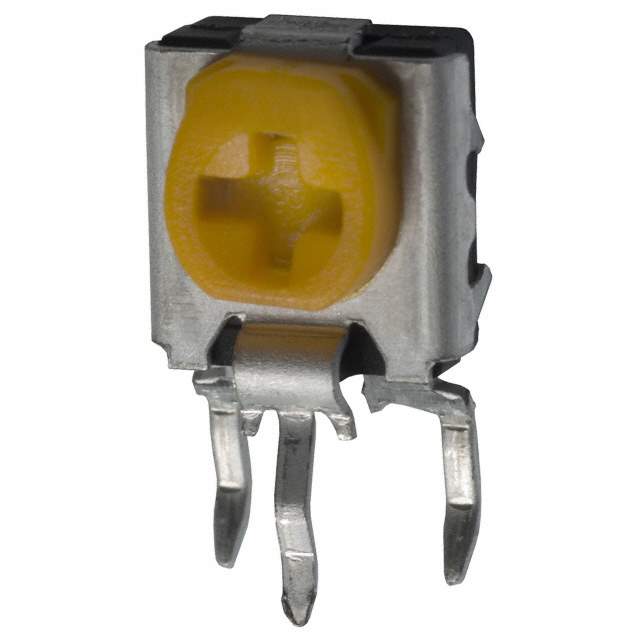

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Panasonic Electronic Components
Series EVN
Package Bulk
Product Status Obsolete
Resistance 5 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Carbon
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names D1AA53,EVN-D1AA00B53,EVND2AA03B53,D1AA53-NDR,EVND1AA00B53
Standard Package 500
Win Source Part Number 1133809-EVN-D2AA03B53
Ultra Librarian 3D Model Ultra Librarian EVN-D2AA03B53 CAD Model

Description

The EVN-D2AA03B53 is a trimmer potentiometer from Panasonic Electronic Components.

  • Resistance: 5 kOhms
  • Power Rating: 0.1W or 1/10W
  • Tolerance: ±30%
  • Temperature Coefficient: None
  • Adjustment Type: Side Adjustment
  • Turns: 1
  • Resistive Material: Carbon
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Standard Package Quantity: 500
  • Dimension: Rectangular - 0.252" x 0.307" Face (6.40mm x 7.80mm)
  • Status: Obsolete
