Same model may have multiple batches, images only for reference.

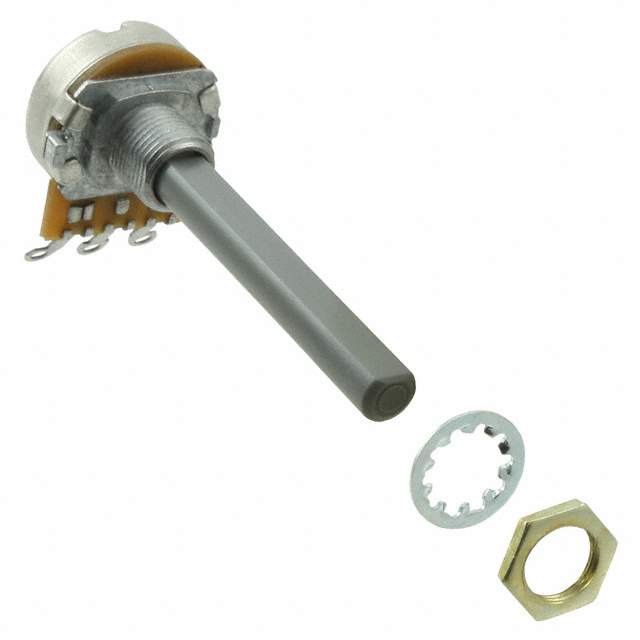

23ESB102MMF50NF Real Image
Same model may have multiple batches, images only for reference.

23ESB102MMF50NF

Part No 23ESB102MMF50NF
Manufacturer TE Connectivity
Catalog Potentiometers, Variable Resistors
Description POT 1K OHM 1/5W CARBON LOG  /  1k Ohm 1 Gang Logarithmic Panel Mount Potentiometer None 1.0 Kierros Carbon 0.2W, 1/5W Solder Lug
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr TE Connectivity Passive Product
Series 23, Citec
Package Bulk
Resistance (Ohms) 1k
Tolerance ±20%
Power (Watts) 0.2W, 1/5W
Built in Switch None
Number of Turns 1
Taper Logarithmic
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient 5%
Rotation 300°
Resistive Material Carbon
Termination Style Solder Lug
Actuator Type Flatted
Actuator Length 1.969" (50.00mm)
Actuator Diameter 0.250" (6.35mm)
Mounting Type Panel Mount
Size - Body Rectangular - 0.992" x 0.717" Face (25.20mm x 18.20mm)
Base Product Number 23ESB
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.40.8070
Other Names 1624149-2,1624149-2-ND
Standard Package 600
Win Source Part Number 1177998-23ESB102MMF50NF
Ultra Librarian 3D Model Ultra Librarian 23ESB102MMF50NF CAD Model

Description

The 23ESB102MMF50NF by TE Connectivity Passive Product is a rotary potentiometer with a logarithmic taper.

  • Resistance: 1k ohms
  • Tolerance: ±20%
  • Temperature Coefficient: 5%
  • Power Rating: 0.2W, 1/5W
  • Actuator Type: Flatted
  • Actuator Length: 1.969" (50.00mm)
  • Number of Turns: 1
  • Bushing Thread: -
  • Built-in Switch: None
  • Rotation: 300°
  • Actuator Diameter: 0.250" (6.35mm)
  • Body Size: Rectangular - 0.992" x 0.717" face (25.20mm x 18.20mm)
  • Mounting Type: Panel Mount
  • Package: Bulk
  • Standard Package: 600
  • Alternative Parts (Cross-Reference): 1624149-2, 23 ESB 102 MMF 50NF, 23ESB102MMF50NF
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8533.40.8070
  • Other Names: 1624149-2, 1624149-2-ND
