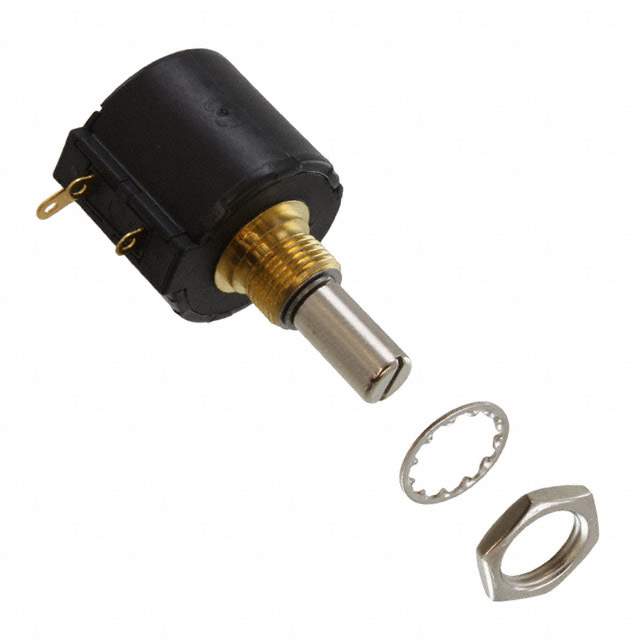

Same model may have multiple batches, images only for reference.

3549S-1AB-502B

Name: 3549S-1AB-502B
Brand: Bourns Inc.
SKU: 1192179
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3549S-1AB-502B
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	POT 5K OHM 2W WIREWOUND LINEAR / 5k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet	3549S-1AB-502B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3549
Package	Tray
Resistance (Ohms)	5k
Tolerance	±3%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.811" (20.60mm)
Actuator Diameter	0.236" (6.00mm)
Bushing Thread	M9 x 0.75
Mounting Type	Panel Mount
Size - Body	Round - 0.885" Dia (22.48mm)
Base Product Number	3549S
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
Standard Package	10
Win Source Part Number	1192179-3549S-1AB-502B
Ultra Librarian 3D Model	Ultra Librarian 3549S-1AB-502B CAD Model

Alternative Products

Description

This is a rotary potentiometer with a user-defined adjustment type manufactured by Bourns Inc.

Win Source Part Number: 1192179-3549S-1AB-502B
Resistance: 5k ohms
Power (Watts): 2W
Number of Turns: 10
Bushing Thread: M9 x 0.75
Actuator Type: slotted
Actuator Length: 0.811" (20.60mm)
Temperature Coefficient: ±50ppm/°C
Tolerance: ±3%
