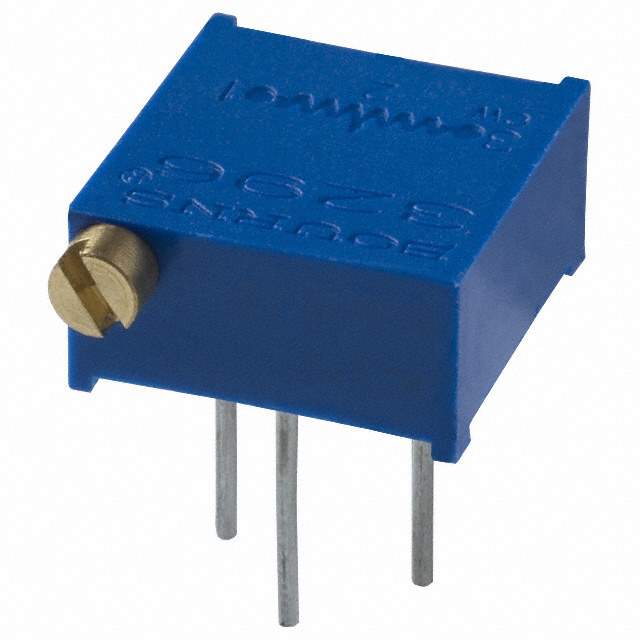

The 3296P-1-103 is a precision multi-turn trimming potentiometer manufactured by Bourns Inc. Designed for applications requiring accurate and stable resistance adjustment, this potentiometer offers fine-tuning capabilities in various electronic circuits.

Applications:

• Calibration of electronic circuits
• Gain control in amplifiers
• Offset voltage adjustment
• Sensor trimming
• Precision voltage division
• Feedback control loops
• Test and measurement equipment

Features:

• Multi-Turn Adjustment: Provides high-resolution resistance setting with multiple turns.
• Sealed Construction: Protects the internal components from dust, moisture, and other environmental factors.
• Cermet Element: Offers excellent stability, high-temperature performance, and long-term reliability.
• Through-Hole Mounting: Enables secure and stable mounting on printed circuit boards.
• Compact Size: Saves valuable space on the circuit board.
• High Resistance Value: Offers a substantial range of resistance adjustment.

Benefits:

• Precise Adjustment: Allows for fine-tuning of circuit parameters to achieve optimal performance.
• Excellent Stability: Maintains resistance value over time and temperature variations.
• Long-Term Reliability: Ensures consistent performance throughout the product's lifespan.
• Easy to Install: Standard through-hole mounting simplifies the installation process.
• Environmental Protection: Sealed construction safeguards against environmental contaminants.

Additional Details:

The Bourns 3296P-1-103 has a resistance value of 10k Ohms (103). It typically has a power rating of 0.5 Watts at 70°C. The mechanical rotation is 25 turns nominal, providing precise control over the resistance setting. The temperature coefficient is typically ±100 ppm/°C. The cermet element provides excellent resistance to wear and ensures long-term stability. The sealed construction protects the element from environmental contamination, further enhancing reliability. The 'P' in the part number indicates the pin style. This potentiometer is commonly used in applications requiring accurate and stable resistance settings over a wide temperature range, such as industrial controls, test equipment, and precision instrumentation. The high number of turns enables precise calibration, critical for achieving optimal performance in sensitive electronic circuits.
