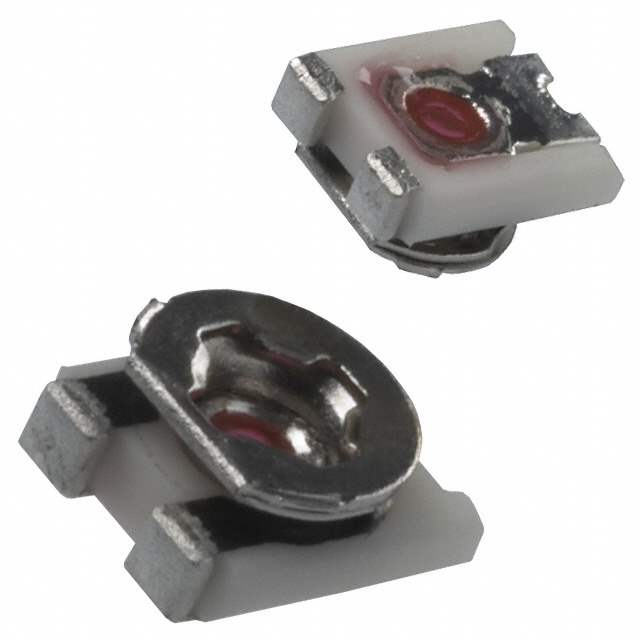

EVM-2WSX80B22 Real Image
Same model may have multiple batches, images only for reference.

EVM-2WSX80B22

Part No EVM-2WSX80B22
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.15W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 200
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.108" x 0.087" Face x 0.041" H (2.75mm x 2.20mm x 1.05mm)
Win Source Part Number 109068-EVM-2WSX80B22
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-2WSX80B22 CAD Model

Description

EVM-2WSX80B22 - Precision Resistor for High-Demand Applications

Ideal for projects requiring precise resistance, the EVM-2WSX80B22 offers unmatched reliability and performance, making it an excellent choice for advanced electronic circuits.

  • Applications:
    • Embedded systems
    • Telecommunication devices
    • Industrial automation
  • Features & Benefits:
    • Exceptional resistance stability
    • Wide range of operating temperatures
    • Enhanced durability under stress
  • Additional Details:
    • Resistance tolerance: ±0.5%
    • Power rating: 2W
    • Made from high-grade materials for enhanced conductivity
