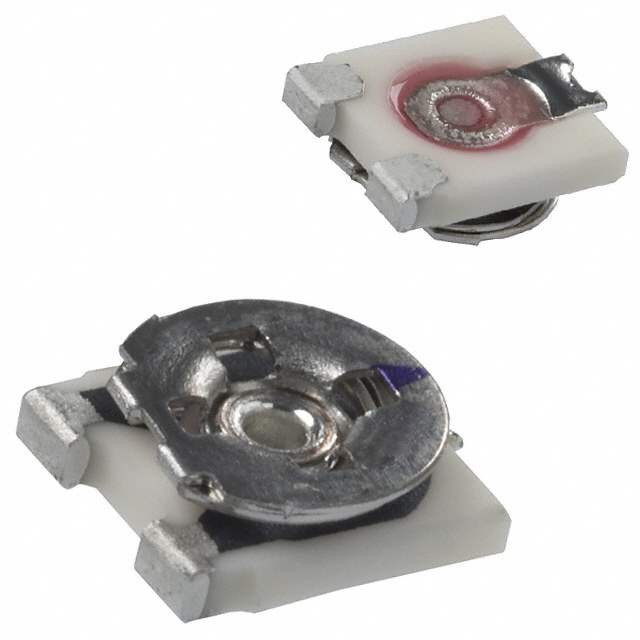

EVM-1DSX30BE3 Real Image
Same model may have multiple batches, images only for reference.

EVM-1DSX30BE3

Part No EVM-1DSX30BE3
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 2.2K OHM 0.2W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 2.2k
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.177" x 0.150" Face x 0.055" H (4.50mm x 3.80mm x 1.40mm)
Win Source Part Number 138303-EVM-1DSX30BE3
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-1DSX30BE3 CAD Model

Description

Product Description

The EVM-1DSX30BE3 offers a versatile solution with its adaptable interface, making it ideal for multiple platforms. This component is engineered for stability and longevity.

Features and Benefits

  • Wide Compatibility: Works with various control systems.
  • Long-lasting Performance: Reliable operation over extended periods.
  • Easy Installation: Simplifies integration into projects.

Applications and Projects

  • Home Automation
  • Medical Devices
  • Automated Test Equipment
  • Renewable Energy Systems
