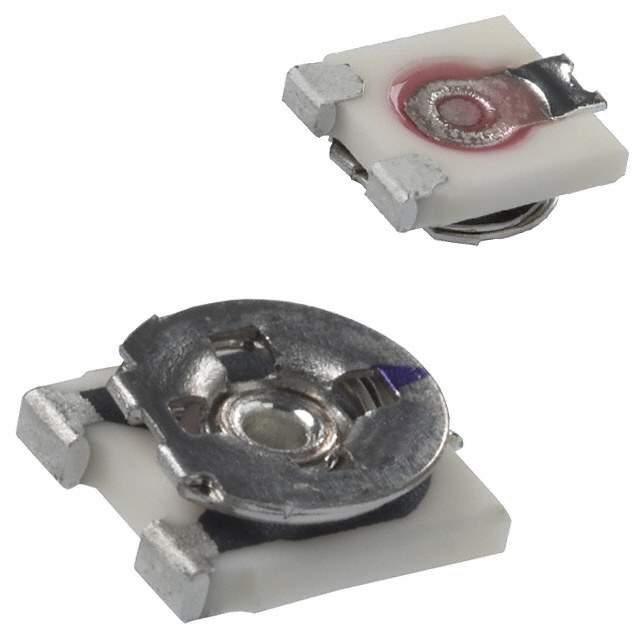

EVM-1DSX30B14 Real Image
Same model may have multiple batches, images only for reference.

EVM-1DSX30B14

Part No EVM-1DSX30B14
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 10K OHM 0.2W J LEAD TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers
Features 10 kOhms 0.2W, 1/5W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Manufacturer Panasonic
Series EVM
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number P1D103CT, P1D103, P1D103CT-NDR, P1D103DKR, P1D103TR-NDR, P1D103TR, EVM1DSX30B14
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871281-EVM-1DSX30B14
Ultra Librarian 3D Model Ultra Librarian EVM-1DSX30B14 CAD Model

Description

The Panasonic EVM-1DSX30B14 is a surface mount trimmer potentiometer with a cermet 1.0 turn top adjustment. Bold the product name (e.g., BAV99S,135 → EVM-1DSX30B14) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Series: EVM series
  • Win Source Part Number: 871281-EVM-1DSX30B14
  • Package: Reel-TR type
  • Quantity per Package: 1000
  • Mounting: Surface mount type
  • Status: Obsolete
  • Resistance: 10 kOhms
  • Power Rating: 0.2W/1/5W
  • Tolerance: ±20%
