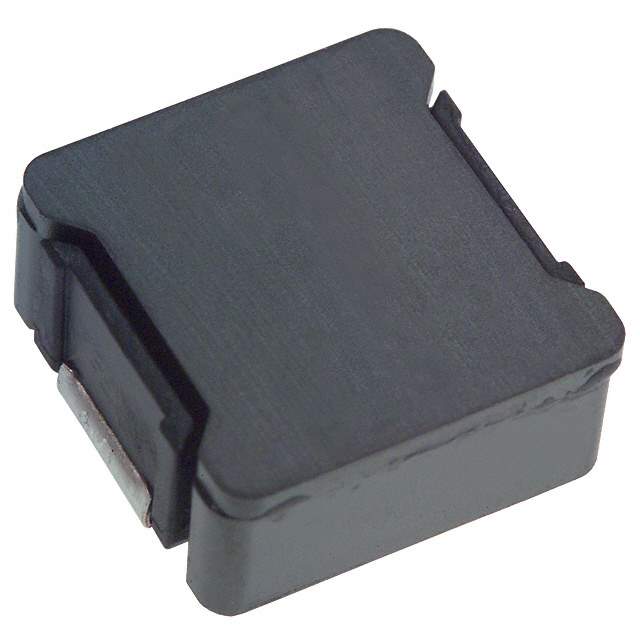

Same model may have multiple batches, images only for reference.

ETQPAF4R8HFA

Name: ETQPAF4R8HFA
Brand: Panasonic
SKU: 1207499
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ETQPAF4R8HFA
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	Ind Power Choke Molded Wirewound 4.8uH 30% 100KHz 14.4A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Case / Package	SMD/SMT
Core Material	Ferrite
Current	22.6 A
Current Rating	14.4 A
DC Current	14.4 A
DC Resistance (DCR)	2.29 mΩ
Depth	16.8 mm
Height	9 mm
Inductance	4.8 µH
Inductance Tolerance	30 %
Lead Free	Lead Free
Length	17.2 mm
Max DC Current	14.4 A
Max Operating Temperature	150 °C
Military Standard	Not
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Pins	2
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	No SVHC
Resistance	2.29 mΩ
RoHS	Compliant
Saturation Current	21.4 A
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	100 kHz
Tolerance	30 %
Width	16.8 mm
Win Source Part Number	1207499-ETQPAF4R8HFA
Categories	Fixed Inductors
Manufacturer	Panasonic
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ETQPAF4R8HFA CAD Model

Alternative Products

Description

The ETQPAF4R8HFA is a fixed inductor with a 4.8μH inductance and 30% tolerance from Panasonic.

Inductance: 4.8μH
Tolerance: 30%
DC Resistance: 2.29 mΩ
Current Rating: 14.4 A
Maximum DC Current: 14.4 A
Saturation Current: 21.4 A
Mounting Type: Surface mount
Package: SMD/SMT
Core Material: Ferrite
Shielding: Unshielded
Compliance: RoHS compliant and lead-free
