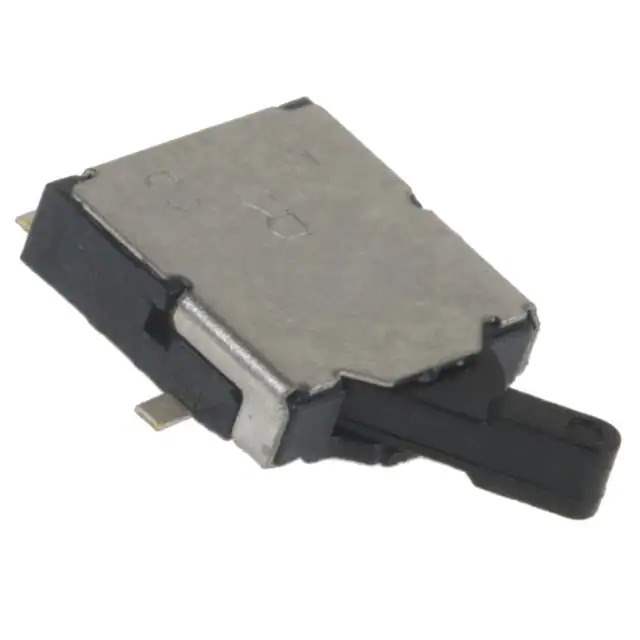

ESE-18L61D Real Image
Same model may have multiple batches, images only for reference.

ESE-18L61D

Part No ESE-18L61D
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NC 10MA 5V / Switch SPST-NC Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series ESE18
Package Tape & Reel
Product Status Active
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Features Board Guide
Operating Force 30gf
Operating Position 0.102" (2.6mm)
Temperature Range - Operating -10°C ~ 60°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-18
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 871220-ESE-18L61D
Ultra Librarian 3D Model Ultra Librarian ESE-18L61D CAD Model

Description

The ESE-18L61D is a limit switch from the ESE18 series manufactured by Panasonic.

  • Series: ESE18
  • Mounting Type: Surface Mount, Right-Angle
  • Termination Style: SMD (SMT) Tab
  • Circuit: SPST-NC
  • Operating Force: 30gf
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 50,000 cycles
  • Voltage Rating: 5VDC
  • Current Rating: 10mA (DC)
  • Operating Temperature Range: -10°C to 60°C
  • Feature: Board Guide
