Same model may have multiple batches, images only for reference.

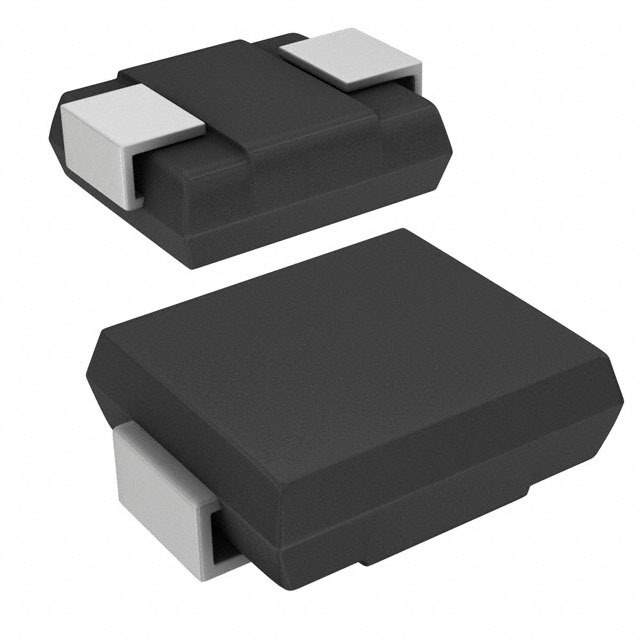

ERZ-CF2MK560 Real Image
Same model may have multiple batches, images only for reference.

ERZ-CF2MK560

Part No ERZ-CF2MK560
Manufacturer Panasonic
Catalog TVS - Varistors, MOVs
Description VARISTOR 56V 50A 2SMD JLEAD / 56 V 50 A Varistor 1 Circuit Surface Mount, MLCV 2-SMD, J-Lead
Datasheet
ERZ-CF2MK560 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Panasonic Electronic Components
Series ZNR®
Package Tape & Reel
Product Status Obsolete
Maximum AC Volts 35 V
Maximum DC Volts 45 V
Varistor Voltage (Min) 50 V
Varistor Voltage (Typ) 56 V
Varistor Voltage (Max) 62 V
Current - Surge 50 A
Energy 1J
Number of Circuits 1
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2-SMD, J-Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names P560ZFCT,ERZCF2MK560,P560ZFCTINACTIVE,P560ZFTR,P560ZFTR-NDR,P560ZFDKR-NDR,P560ZFTRINACTIVE,ERZCF1MK560,P560ZF,P560ZFCT-NDR,ERZ-CF1MK560,P560ZFDKR
Standard Package 2,000
Win Source Part Number 1153367-ERZ-CF2MK560
Ultra Librarian 3D Model Ultra Librarian ERZ-CF2MK560 CAD Model

Description

The ERZ-CF2MK560 is a circuit protection electronic component manufactured by Panasonic Electronic Components. It is a TVS-Varistors, MOVs series product and is packaged in tape and reel.

  • Varistor Voltage Range: 50V to 62V
  • Surge Current: 50A
  • Maximum AC Voltage: 35V
  • Maximum DC Voltage: 45V
  • Energy Rating: 1J
  • Mounting: Surface mountable with MLCV
  • Halogen-Free: Yes
  • EAR99: Compliant
  • Status: Obsolete
  • Alternative Part Number: ERZCF2MK560
