Products specifications

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Resistance 56 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERJ-8GEYJ
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number P56ECT-NDR,ERJ-8GCYJ560V,P56EDKR,ERJ8GEYJ560S,P56ECT,P56TR,P56EDKR-NDR,ERJ-8GEYJ560,ERJ8GEYJ560,ERJ8GEYJ560V,ERJ8GCYJ560V,P56ETR,ERJ-8GEYJ560S,P56ETR-NDR
Standard Package 5,000
Win Source Part Number 1326671-ERJ-8GEYJ560V
Ultra Librarian 3D Model Ultra Librarian ERJ-8GEYJ560V CAD Model

Description

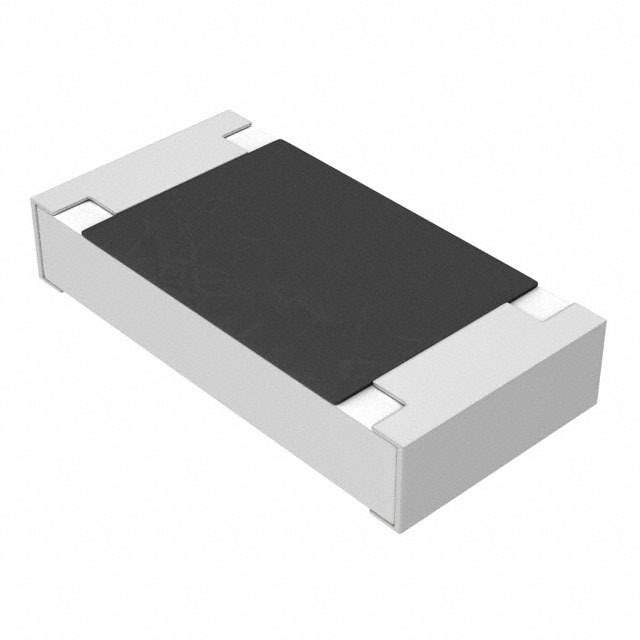

The Panasonic Electronic Components ERJ-8GEYJ560V is a thick film chip resistor designed for automotive applications.

  • Resistance: 56 ohms
  • Power Rating: 0.25W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Rated Temperature Range: -55°C to 155°C
  • Package: 1206 (3216 metric)
  • Terminations: 2
  • Compliance: AEC-Q200
  • Packaging: Reel of 5,000
