Same model may have multiple batches, images only for reference.

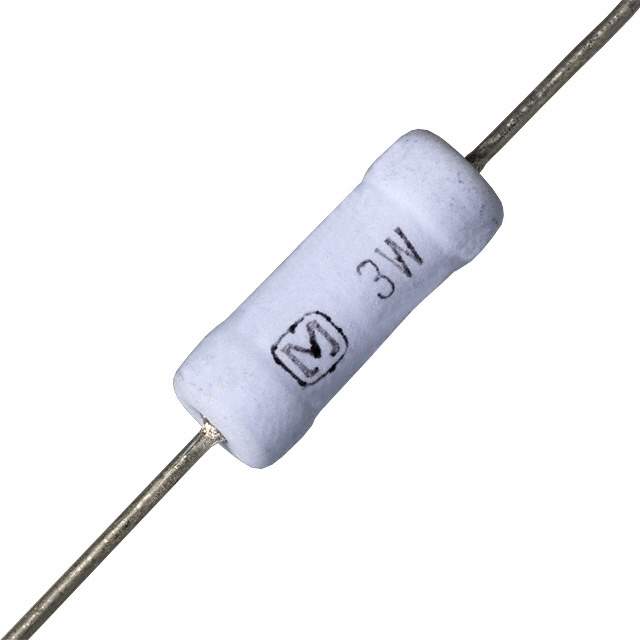

ERG-3SJ240A Real Image
Same model may have multiple batches, images only for reference.

ERG-3SJ240A

Part No ERG-3SJ240A
Manufacturer Panasonic
Catalog Through Hole Resistors
Description RES 24 OHM 5% 3W AXIAL / 24 Ohms ±5% 3W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Panasonic Electronic Components
Series ERG
Package Tape & Reel
Product Status Obsolete
Resistance 24 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Oxide Film
Features Flame Proof, Safety
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 235°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.217" Dia x 0.591" L (5.50mm x 15.00mm)
Number of Terminations 2
Base Product Number ERG-3
Standard Package 1,500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1349711-ERG-3SJ240A
Ultra Librarian 3D Model Ultra Librarian ERG-3SJ240A CAD Model

Description

The Panasonic Electronic Components ERG-3SJ240A is a through hole resistor.

  • Manufacturer: Panasonic Electronic Components
  • Resistance: 24 Ohms
  • Power (Watts): 3W
  • Tolerance: ±5%
  • Composition: Metal Oxide Film
  • Temperature Coefficient: ±300ppm/°C
  • Operating Temperature: -55°C ~ 235°C
  • Features: Flame Proof
  • Packaging: Tape & Reel (TR)
  • Package / Case: Axial
  • Standard Package: 1,500
  • Status: Obsolete
