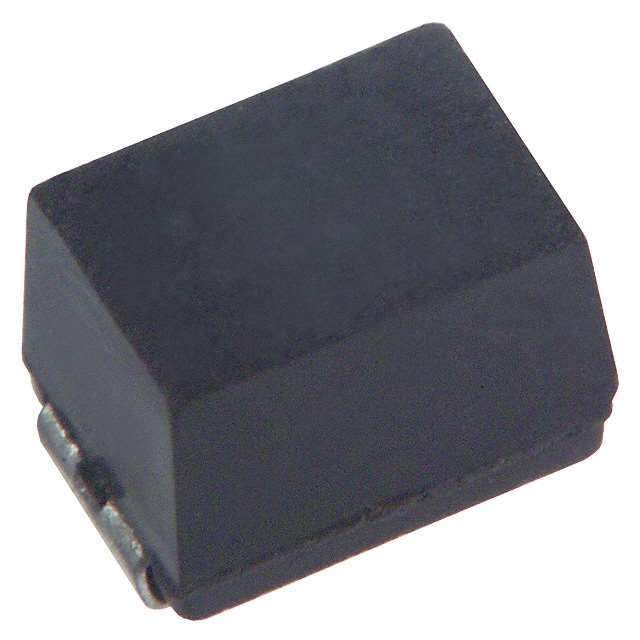

The ELJ-FB560JF is a fixed inductor manufactured by Panasonic. It is designed for use in various electronic circuits, including power supplies, RF circuits, and filtering applications. The '560' in the part number likely indicates an inductance value of 56 µH (microhenries), and the 'JF' likely specifies tolerance and packaging details.

Applications

• DC-DC Converters: Energy storage and filtering in voltage conversion circuits.
• RF Circuits: Impedance matching and tuning in radio frequency applications.
• EMI Filtering: Suppression of electromagnetic interference in electronic devices.
• Signal Filtering: Removal of unwanted noise and frequency components from signals.
• Power Supply Filtering: Smoothing voltage ripple and reducing noise in power supplies.

Features

• Inductance: 56 µH (microhenries - check datasheet for tolerance).
• Tolerance: Likely ±5% or ±10% (check datasheet for specific value).
• Rated Current: Maximum current the inductor can handle without performance degradation.
• DC Resistance (DCR): Resistance of the inductor's coil, affecting efficiency.
• Self-Resonant Frequency (SRF): Frequency at which the inductor's impedance is maximized.

Benefits

• Efficient Energy Storage: Stores energy effectively in DC-DC converters.
• Effective EMI Suppression: Reduces unwanted noise and interference.
• Precise Impedance Matching: Optimizes signal transfer in RF circuits.
• Improved Signal Quality: Filters out noise for clearer signals.
• Compact Size: Allows for use in small electronic devices.

Additional Details

The ELJ-FB560JF is generally a wire-wound inductor with a ferrite core. Available in different surface-mount packages. Refer to the Panasonic datasheet for specific dimensions, rated current, DC resistance, and self-resonant frequency. The inductor selection should be based on application frequency, current, and voltage needs for optimal performance.
